Tungsten Halogen Search Light

Tungsten Halogen Searchlight

The Scope of Application:

Applied to far distance illumination and searching when night navigation,especially for illumination of sea-route and two banks and surface search when across the complex water area,such as narrow channel and the inland river way etc.

Product Characteristic:

The tungsten halogen cycle eliminates the blackening of the bulb, the filament operating temperature and light efficiency can be greatly improved, and the lamp life is also extended accordingly. Tungsten halogen lamp has higher illumination and better color rendering.

Parallel light-beam, far illumination distance, concentrated light the lamp can adjust up 20 degrees, 350 degrees horizontally.

Production Authentication:

Conform to GRADE ENTRY NORMS FOR STEEL SHIPS

Product Specification:

Type	Voltage	Power	Lamp Holder	Luminous Flux (lm)	Protection  Class	Cable Outside Diameter	Weight
TG26	24V	250W	G6.35	5600	IP56	Ø10-Ø12	20.5kg
	220V/50HZ/ 220V/60HZ	300W	GY9.5	6900
		500W		12500
TG27	220V/50HZ/ 220V/60HZ	1000W	GY9.5	23000	IP56	Ø10-Ø12	20.5kg
TG28	220V/50HZ/ 220V/60HZ	2000W	GY16	53000	IP56	Ø12-Ø14	30kg
TG26-A	220V/50HZ/ 220V/60HZ	300W	GY9.5	6900	IP56	Ø13-Ø18	24.5kg
		500W		12500
TG27-A	220V/50HZ/ 220V/60HZ	1000W	GY9.5	23000	IP56	Ø13-Ø18	24.5kg
TG28-A	220V/50HZ/ 220V/60HZ	2000W	GY16	53000	IP56	Ø14-Ø16	60.5kg
TG26-B	220V/50HZ/ 220V/60HZ	300W	G6.35	6900	IP56	Ø10-Ø12	16.5kg
		500W	GY9.5	12500
TG27-B	220V/50HZ/ 220V/60HZ	1000W	GY9.5	23000	IP56	Ø10-Ø12	16.5kg
TG28-B	220V/50HZ/ 220V/60HZ	2000W	GY16	53000	IP56	Ø12-Ø14	30kg

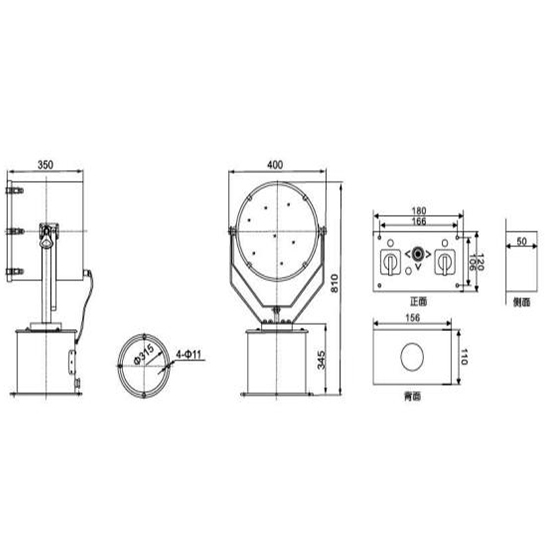

Drawing ofTungsten Halogen Searchlight TG26-A:

Photo Two of Tungsten Halogen Searchlight :
