U2 Stud Link Anchor Chain

U2 Stud Link Anchor Chain

Description:

Anchor chain cable is joined by many links. Due to the presence of stud in the middle of a link, anchor chain cable is divided into stud link chain and studless link chain. Anchor chains can be processed through the following methods: forging, casting and welding. Marine anchor chain consists of a number of “shackle” with the length of 25.0m to 27.5m. Every two shackles of anchor chain are connected by a link or shackle.

Anchor Chain Application:

Anchor chains are used in marine applications to secure a ship or vessel to the seafloor. They are typically made of high-strength steel and are designed to withstand the immense forces that are generated by wind, waves, and currents.
The anchor chain is connected to the anchor on one end and to the ship on the other end. The weight of the chain helps to keep the anchor on the seafloor, and the chain also serves to absorb shock loads as the ship moves around.
When deploying the anchor, the chain is paid out until the desired length is reached. The amount of chain used will depend on the depth of the water, the strength of the current, and the size of the vessel. Once the anchor is set, the chain is tensioned to ensure that the anchor remains firmly embedded in the seabed.
Anchor chains are critical to the safety and stability of a vessel, especially in harsh weather conditions. Proper selection, installation, and maintenance of anchor chains are important to ensure safe and reliable operation.

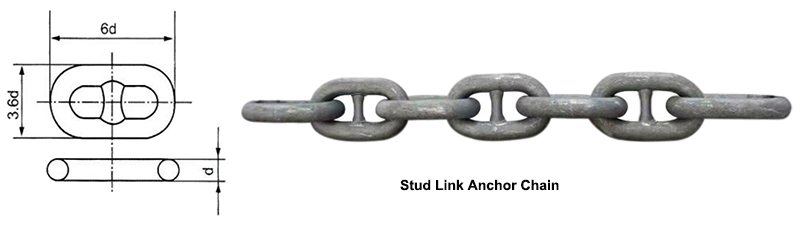

Drawing of Stud Link Anchor Chain:

'D' Shackle Connection:

Kenter Shackle Connection:

Main Nominal Diameter of U2 Stud Link Anchor Chain:

Nominal Chain Diameter (mm)	Proof Test Load (KN)	Breaking Test Load (KN)	Approx. Mass (kg/ 27.5m)
12.5	66	92	105
14	82	116	142
16	107	150	175
17.5	127	179	194
19	150	211	236
20.5	175	244	269
22	200	280	322
24	237	332	370
26	278	389	431
28	321	449	496
30	368	514	564
32	417	583	635
34	468	655	712
36	523	732	800
38	581	812	887
40	640	896	1032
42	703	981	1084
44	769	1080	1197
46	837	1170	1310
48	908	1270	1438
50	981	1370	1546
52	1060	1480	1661
54	1140	1590	1791
56	1220	1710	1926
58	1290	1810	2086
60	1380	1940	2249
62	1470	2060	2361
64	1560	2190	2516
66	1660	2310	2676
68	1750	2450	2885
70	1840	2580	3010
73	1990	2790	3274
76	2150	3010	3548
78	2260	3160	3737
81	2410	3380	4030
84	2580	3610	4334
87	2750	3850	4650
90	2920	4090	4976
92	3040	4260	5199
95	3230	4510	5544
97	3340	4680	5780
100	3530	4940	6143
102	3660	5120	6398
105	3850	5390	6773
107	3980	5570	7033
111	4250	5940	7569
114	4440	6230	7983
117	4650	6510	8409
120	4850	6810	8863
122	5000	7000	9143
124	5140	7200	9598
127	5350	7490	9908
130	5570	7800	10382
132	5720	8000	10620
137	6080	8510	11439
142	6450	9030	12289
147	6840	9560	13170
152	7220	10100	14081
157	7600	10640	15023
162	7990	11180	15995

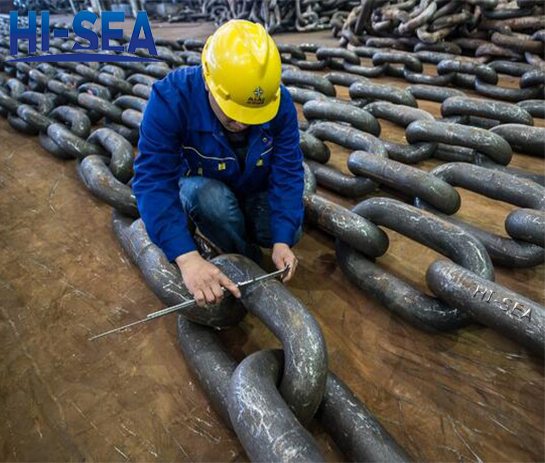

Display of U2 Stud Link Anchor Chain:
