Vertical Anchor Capstan
Vertical Anchor Capstan
Application
A Vertical Anchor Capstan is a type of machinery used in marine and offshore operations for anchoring a vessel. The capstan is a vertically oriented winch that rotates a drum around which a cable or rope is wrapped. Vertical anchor capstans can be delivered with electric as well as hydraulic drives. The electric anchor capstan can be delivered with a one, two or three speed electric motor. The advantage of the infinite control of the capstan head can be achieved with hydraulic or frequency driven capstans. Vertical Anchor Capstans are available in a range of sizes and capacities, depending on the size of the vessel and the weight of the anchor. They can be powered by electric, hydraulic, or pneumatic motors, depending on the specific application and the power source available on the vessel.
Material
Cast steel, 316L stainless steel.
Advantages and Features
1. Compact structure, high strength;
2. Local control and remote control;
3. Reliable service, high security;
4. Corrosion resistance, long lifespan;
5. Easy installation, easy maintenance;
6. With gypsy wheel;
7. Manual or hydraulic brake and clutch;
8. Structure: Vertical;
9. Can be customized according to your requirements;
10. Approved by BV, LR, RINA...
Drawing of Vertical Anchor Capstan
|
Chain Dia (mm) |
Working Load(KN) |
Working Speed(m/min) |
Warping Load(KN) |
Warping Speed(m/min) |
Wire Dia.(mm) |
Motor Power(kw) |
|
| Electric | Hydraulic | ||||||
| Φ11/14 | 5.9/7.4 | ≥12 | 5 | ≥10 | Φ11 | 3/1.2 | 4 |
| Φ16/17.5 | 10.9/13.0 | ≥12 | 8 | ≥10 | Φ13 | 4.3/1.7 | 7.5 |
| Φ19/22 | 15.3/20.6 | ≥12 | 10 | ≥10 | Φ13 | 6/2.5 | 11 |
| Φ24/26 | 24.5/28.7 | ≥9 | 20 | ≥8.5 | Φ15 | 7.5/7.5/5 | 11 |
| Φ28/30 | 33.3/38.3 | ≥9 | 30 | ≥8.5 | Φ17.5 | 16/16/11 | 15 |
| Φ32/34/36 | 43.5/49.1/55.1 | ≥9 | 30 | ≥8.5 | Φ17.5 | 16/16/11 | 18.5 |
| Φ38/40/42 | 61.4/68.0/75.0 | ≥9 | 50 | ≥8.5 | Φ20.5 | 22/22/16 | 30 |
| Φ44/46/48 | 82.3/89.9/97.9 | ≥9 | 50 | ≥8 | Φ26 | 30/30/22 | 37 |
| Φ50/52/54 | 106.3/114.9/123.9 | ≥9 | 60 | ≥8 | Φ26 | 30/30/22 | 45 |
| Φ56/58/60 | 133.3/143/153 | ≥9 | 60 | ≥8 | Φ26 | 45/45/30 | 55 |
|
Above specifications only for reference, we can supply various capstan according to your requirements. |
|||||||

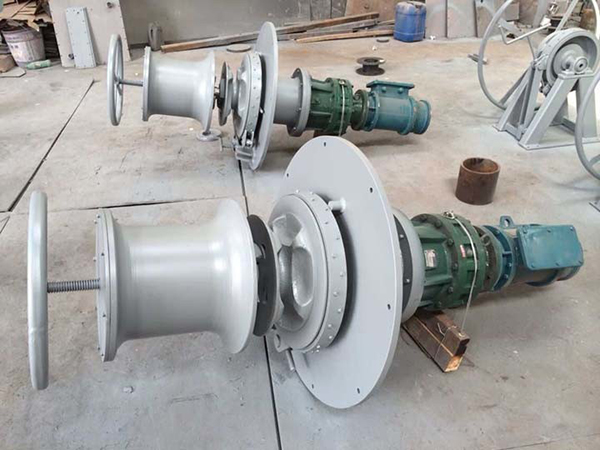

Finished Image of Vertical Anchor Capstan
.jpg)
