Wide-body Shackle

Wide-body Shackle

Description:

Wide-body shackle is made of alloy steel with bolt pin. The body of the wide-body shackle is manufactured through die forging and free forging. This shackle is galvanized on the surface. The working load of this shackle is from 55t to1500t. The size and working load is shown on the body of shackle.

Product Superiority:

1. High load bearing ability

2. High strength

Product Detail (please refer to “Drawing of Wide-body Shackle”):

WLL(t)	Dimension(mm)						Weight(kg)
	W	D	P	O	B	S
55	85	57	100	55	160	240	32.6
85	110	76	130	75	200	310	78.4
120	130	85	150	85	220	365	109
150	140	95	170	90	250	390	154.8
200	150	105	205	100	280	460	251.8
300	185	134	265	120	350	630	451.7
400	220	160	320	145	370	650	758.9
500	250	180	340	160	450	680	803
600	275	200	370	170	490	740	1031
700	300	215	400	190	540	750	1260
800	325	230	420	200	554	850	1710
900	350	255	440	220	584	850	1980
1000	380	270	460	240	614	850	2350
1250	430	300	530	260	644	930	2950
1500	460	320	560	280	680	950	3500

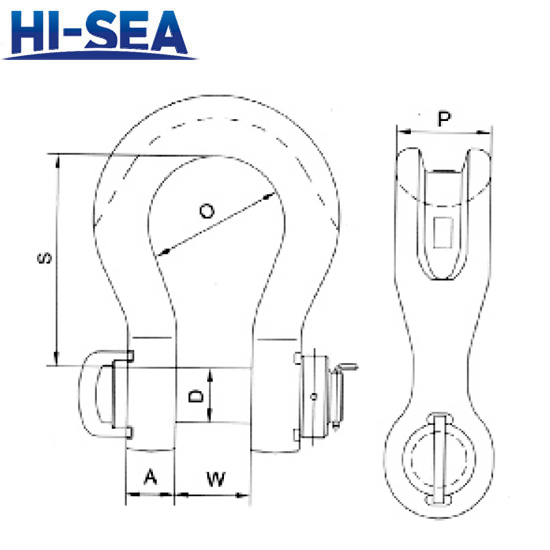

Drawing of Wide-body Shackle:
