YQ-10 Marine Diaphragm Type Air Whistle

YQ-10 Marine Diaphragm Type Air Whistle

Description:

YQ-10 marine diaphragm type air whistle is a navigating device with condensed as sound motive. It is applied to various ships and boats , and can be used as the source of the alarm signal in the case of clearing of entering a port , shunning in voyage or bad visibility.

Features:

1. Simple structure.

2. Reliable quality.

3. Clear sound.

4. Large air capacity , small air consumption.

Requirements:

It is accordance with the IMO A. 1021(26) Resolution《2009 Alarm and Indicator Rules》and 1972《The inter-national maritime regulations for preventing collisions》Appendix 3 article 1 requirements.

Specifications：

Type:YQ-10

Nominal dimensions:10mm

Nominal pressure:0.8Mpa

1/3 frequency band:≥134dB

Frequency range: 250-700Hz

Hearing distance:1.0mile

Length of ship:20~<75m

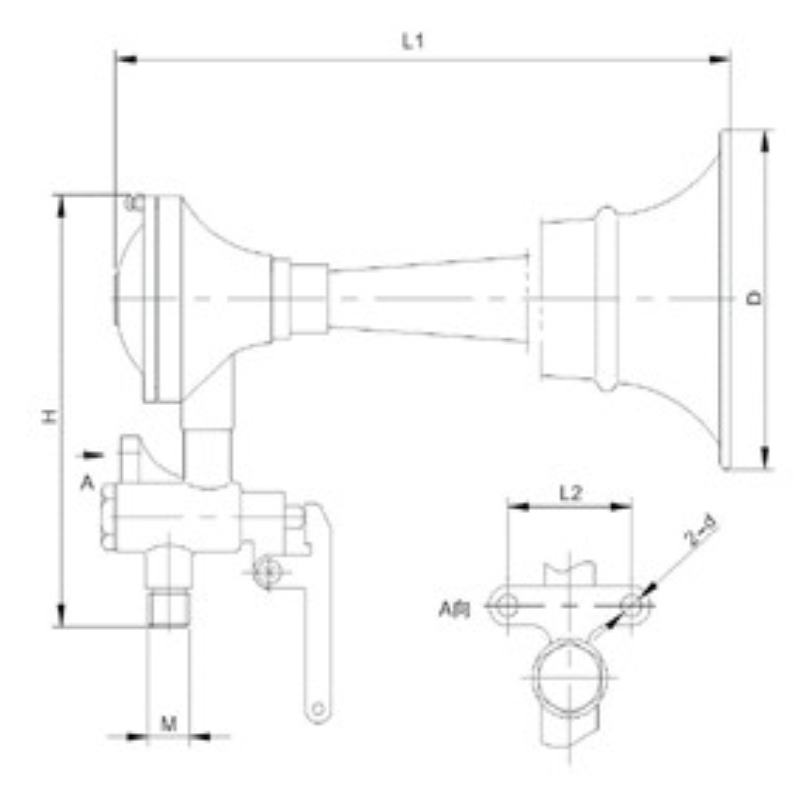

Drawing of YQ-10 Marine Diaphragm Type Air Whistle:

L1:568mm

L2:60mm

H:252mm

M:M20x1.5mm

D:Φ245mm

d:Φ11mm
