Marine Ejector Pump Exported to Dubai
HI-SEA MARINE successfully delivered 1 Set of marine ejector pump to Dubai.
The main parameters are as follows:

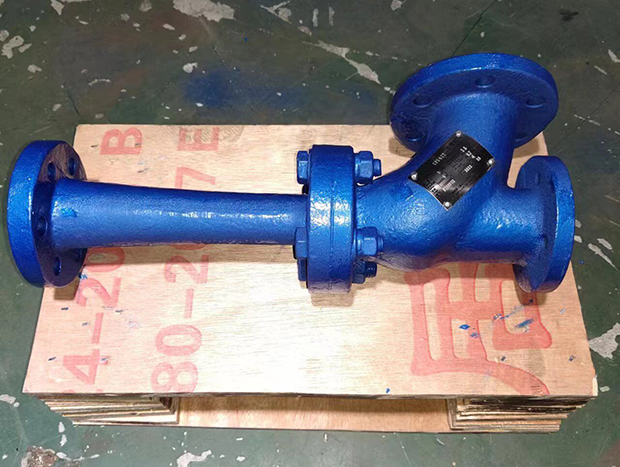

Marine Ejector Pump
Type: CP5 -0.7T
Material: Casing: Cast iron, Nozzle: Stainless steel
Work water/ Intel/ Outlet flange: 32/50/32 mm
Capacity: 5 m3/h
Pressure: 0.7Mpa
Wastage: 3.6 m3/h
The drawing is as follows:
To meets with the client’s delivery time, HI-SEA MARINE finished the good and shipped it to the client’s named port of destination within 5 days. Now the goods are at the working site, the client is very satisfied with the excellent performance of the goods.
The Series of various types of jet pump for ship drainage system drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing. The basic working principle of jet pump by the main components of the first word is wraparound for "spray, suction, mixed, expansion of" four words. Namely: the injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet (Spray); formed in the suction chamber pressure, ejection of transported liquid (Suction); working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange (Mixed); again diffuser chamber by converting kinetic energy into pressure energy discharge (Expanded).
