Combined Windlass Winch
Application
A combined windlass winch is a type of winch that combines a windlass and a winch into one machine. It is designed to lift or pull heavy loads using either electric, hydraulic, or manual power, and typically consists of a winch drum or spool, a wire rope or cable, a windlass drum or gypsy, and a motor, hydraulic system, or handle. It is an ideal choice to perform both anchoring and mooring functions in various types of vessels. Combined windlass winches are commonly used in marine applications, such as anchoring, mooring, and towing, where heavy loads need to be lifted or pulled over long distances. The combined design allows for efficient use of space and equipment, and the choice of power source provides flexibility for different operating conditions.
As shown in the picture, this winch has three drums and two gypsy wheels. And it is equipped with manual brake and manual clutch. A combined windlass winch is typically made of durable materials such as stainless steel or aluminum to withstand the harsh marine environment. The winch may also include safety features such as overload protection, emergency stops, and limit switches to prevent overloading or accidents.
Overall, combined windlass winches are reliable and efficient machines that provide a safe and effective way to lift or pull heavy loads in marine applications. They are ideal for applications where space and equipment are limited, and where different power sources may be required for different operating conditions. The capacity of a combined windlass winch can vary widely depending on the specific design and intended application.
Material
Aluminum, stainless steel and carbon steel.
Advantages and Features
1. Compact structure, high strength;
2. Remote control or local control;
3. Low noise, high security;
4. Working steadily and smoothly;
5. Easy for installation, lubrication and maintenance;
6. Corrosion resistance, long lifespan;
7. Triple drums, double gypsy wheels.
8. Manual brake and manual clutch;
9. Can be customized according to your requirements;
10. Certificate: BV, RINA, LR...
Technical Parameters
Chain Dia
Working Load
Supporting Load
Working Speed
Mooring Pull
Mooring Speed
Drum Capacity
Motor Power
mm
kN
kN
m/min
kN
m/min
m
kW
14/16/17.5
8.3/10.9/13.0
51/67/80
≥9
8
≥12
φ11*100
4.3/1.7
19/20.5/22
15.3/17.9/20.6
95/110/126
≥9
15
≥12
φ13*120
8.5/3.5
24/26
24.5/28.7
149/175
≥9
20
≥12
φ15*120
28/30
33.3/38.3
202/231
≥9
30
≥12
φ18*150
11/11/7.5
32/34/36
43.5/49.1/55.1
261/294/329
≥9
40
≥12
φ20.5*150
16/16/11
38/40/42
61.4/68.0/75.0
365/402/442
≥9
50
≥12
φ20.5*150
22/22/16
44/46/48
82.3/89.9/97.9
483/526/570
≥9
60
≥12
φ26*200
30/30/22
Above specifications only for reference, we can supply various winches according to your requirements.

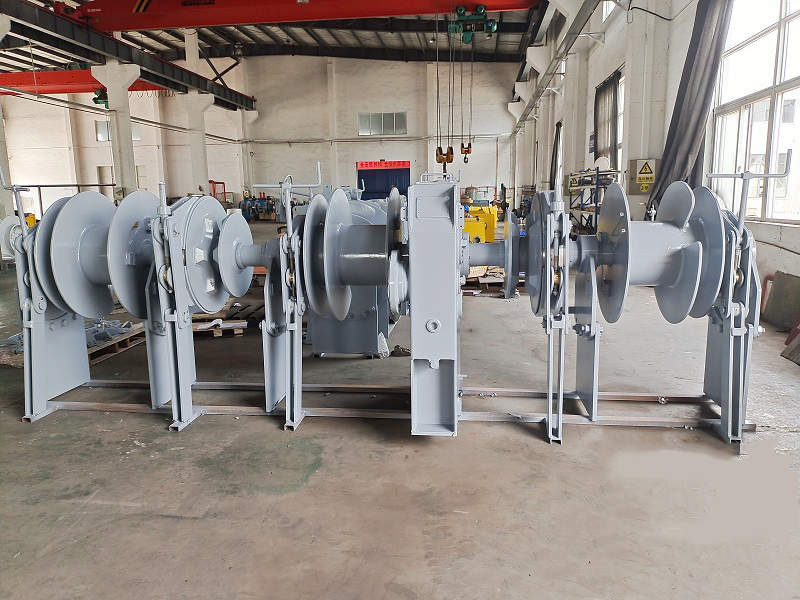

Finished Image of Combined Windlass Winch
