JIS F2031 Cast Steel Bar Type Chain Stopper
Application:
JIS F2031-1998 cast steel bar type chain stopper is a device used for ship mooring to prevent the anchor chain slipping out.
We can supply different types of chain stoppers including roller type chain stopper, screw type chain stopper, bar type chain stopper, pawl type chain stopper, etc..
For more information, please contact us.

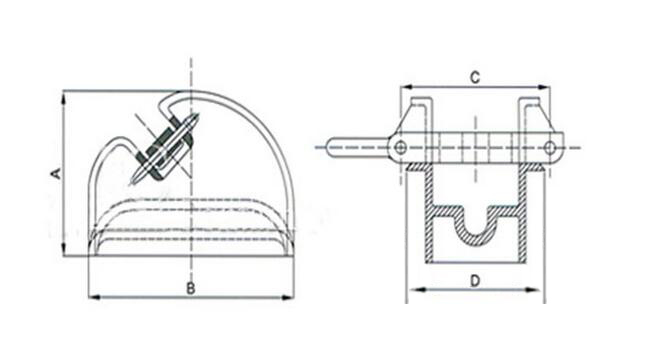

Drawing of JIS F2031 Cast Steel Bar Type Chain Stopper:
Parameters of JIS F2031 Cast Steel Bar Type Chain Stopper:
Nominal
Size
(mm)
Applicable
Dia. of Anchor
Chain
(mm)
Size(mm)
Weight
(kg)
A
B
C
D
40
38~40
378
540
390
336
85
44
42~44
412
590
424
366
108
48
46~48
450
640
460
397
139
52
50~52
491
695
494
428
173
56
54~56
528
745
530
457
210
60
58~60
564
795
564
488
255
64
62~64
600
850
600
517
305
68
66~68
635
900
636
547
363
73
70~73
675
960
678
582
452
78
76~78
715
1020
720
617
551
Features of JIS F2031 Cast Steel Bar Type Chain Stopper:
1. Model Type: bar type chain stopper;
2. Material: Cast steel;
3. Applicable Anchor Chain Dia.:38~78mm;
4. Weight: 85 to 551kg;
5. Finish: Anti-rust paint;
6. Certificate: ABS, CCS, BV, LR, NK, etc.;
7. Customized service is available.
JIS F2031 Cast Steel Bar Type Chain Stopper after Painted:
