Marine Fixed Pilot Seat

Description:

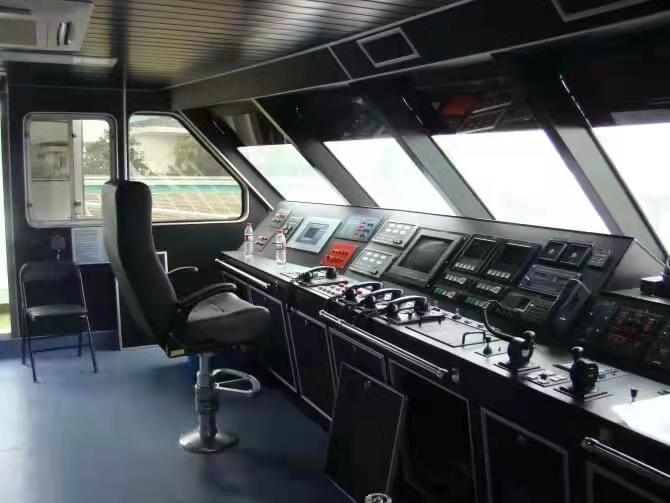

Marine fixed pilot seat is a kind of marine chair which is without the slide rail. The fixed lifting column on deck provides more stability when there is the violent shaking during the sailing. It can be used in boats, ships, and other marine vessels. It is designed specifically for the pilot or captain of the vessel, providing a stable and secure seating position from which to operate the vessel.

The seat is typically mounted on a pedestal or base that is securely bolted to the deck or floor of the vessel. The pedestal allows the seat to be adjusted for height and swivel, allowing the pilot to have a clear view of the surrounding area and to steer the vessel with precision.

The seat itself is designed for comfort and durability, with a sturdy frame and supportive cushioning. It may be upholstered with marine-grade vinyl or other materials that can withstand exposure to salt water, sunlight, and other harsh marine conditions.

Some marine fixed pilot seats may include additional features such as armrests, footrests, and built-in controls for navigation, communication, and other vessel systems. Overall, the marine fixed pilot seat is an essential component of any boat or ship, providing a safe and comfortable place for the captain to command the vessel.

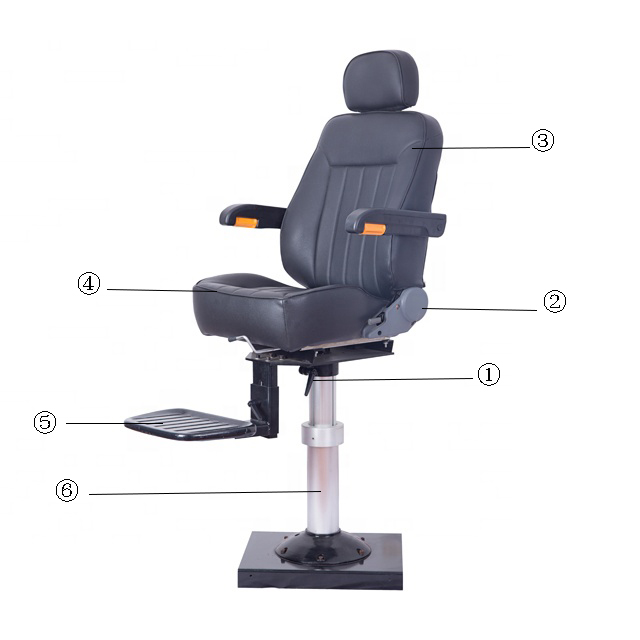

1. lifting column: hydraulic lifting column and pneumatic lifting column are optional. The hydraulic lifting column is a square tube column. Pneumatic lifting column can choose steel column and aluminum alloy column.

2. The seat lifting and tilting parts: steel structure and aluminum alloy are optional.

3. Seat Surface: genuine leather/ PU leather/ PVC leather/ microfiber leather /fabric are optional.

4. The seat back and the seat cushion: the steel inner core and high-density sponge synthesis, outsourcing leather or cloth.

5. Pedal steel plate : environmentally friendly rubber synthetic/ steel /aluminum alloy are optional.

Specification：

ITEM	Tilting Parts	Seat Backrest	Headrest	Pneumatic lifting components	Seat pedal	Seat
Adjustable Height	120mm（Horizontal）; 50mm（Vertical）	———	50mm	0-150mm	0-50mm	——
Adjustable Angle	±12°	85°-150°	360°	————	90°	360°
