Marine Ejector Pump
Description:
The Series of various types of jet pump for ship drainage system or drainage equipment, can also be used for conveying liquid, gas mixture, the mixture of gas and liquid, powder, more suitable for vacuum diversion, vacuum evaporation, vacuum filtration, vacuum drying, deodorizing.
The basic working principle of jet pump："spray, suction, mixed, expansion"：
1.Spray：The injection pump is the use of high-voltage workflow body through the nozzle to produce 25 ~50m/s high-speed jet;
2.Suction：formed in the suction chamber pressure, ejection of transported liquid;
3.Mixed：working fluid wrapped with the ejected fluid into the mixing chamber for mixing together with the energy exchange;
4.Expanded：again diffuser chamber by converting kinetic energy into pressure energy discharge.
Certificate： CCS， etc.

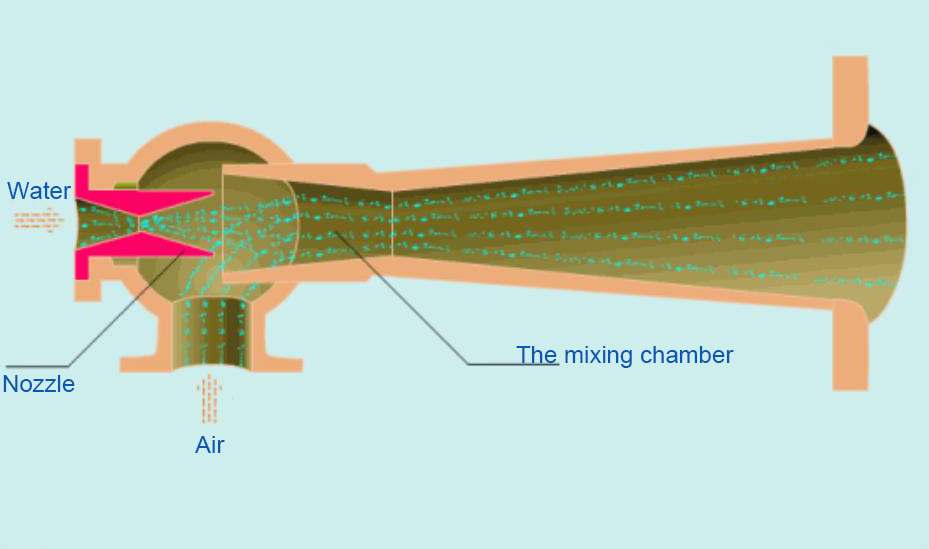

Principle of marine ejector pump:
Product Showcase：
|
Marine Ejector Pump |
||
|
|
|
|
How to choose the suitable marine ejector pump:
Type/Inhalation flow (m3/h)/Discharge pressure and diameter/suction height and diameter/working water pressure(MPa)/Length, etc.
CPT--right-angle ship jetting water pump;
CPJ--linear ship jetting water pump;
CP--right-angle(shortening) ship jetting water pump.
Photo of marine ejector pump:
