Caisson Moving Airbag
Description:
A caisson moving airbag is a specialized device used for the transportation and relocation of large underwater structures, such as caissons or other heavy objects. It employs the principle of buoyancy to lift and move these structures with minimal damage or disruption.
The caisson moving airbag consists of a durable and flexible airtight bag, typically made of reinforced rubber or PVC material. It is designed to be inserted beneath the structure to be moved, usually underwater. The bag is then inflated with compressed air, causing it to expand and create a lifting force.
The airbag's lifting force enables the caisson or other submerged object to rise and float in the water. This flotation effect reduces the overall weight and friction of the structure, allowing it to be easily maneuvered and transported to its desired location.
To control the movement of the caisson, the airbag is divided into several separate compartments or chambers. Each chamber has its own valve, allowing for precise control over the inflation and deflation process. By adjusting the air pressure in different chambers, operators can manipulate the buoyancy and stability of the structure, ensuring safe and controlled movement.
During transportation, the caisson moving airbag is often attached to a towing system, such as cables or ropes, which are connected to powerful winches or tugboats. These towing systems provide the necessary force to pull the structure through the water or onto a dry surface.
Caisson moving airbags are particularly useful in situations where traditional lifting methods, such as cranes or hydraulic systems, are impractical or inaccessible. They offer a versatile and efficient solution for moving heavy objects in challenging underwater environments, such as ports, harbors, or offshore installations.
It is worth noting that while the concept of caisson moving airbags remains consistent, specific designs and configurations may vary depending on the size and weight of the structures being moved, as well as the specific requirements of each project.

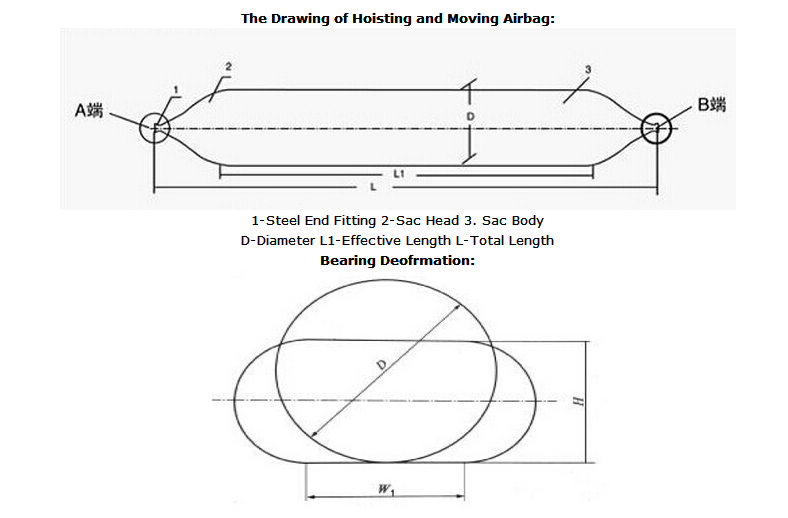

Airbag
Diameter D(m)
Operating
Pressure (Mpa)
Test
Pressure (Mpa)
Operating
Depth
0.5D
Operating
Depth
0.4D
Operating
Depth
0.3D
Operating
Depth
0.2D
Category
Bearing Capacity Each Meter of Airbag(kn/m)
Medium Pressure Airbag
0.3
0.340
0.408
80
96
112
128
0.6
0.167
0.200
79
94
110
126
0.8
0.125
0.150
79
94
110
126
1
0.100
0.120
79
94
110
126
1.2
0.084
0.101
79
95
111
127
1.5
0.067
0.080
79
95
111
126
1.8
0.056
0.067
79
95
111
127
2
0.050
0.060
79
94
110
126
2.5
0.040
0.048
79
94
110
126
3
0.033
0.040
78
93
109
124
High Pressure Airbag
0.6
0.334
0.401
157
189
220
252
0.8
0.250
0.300
157
188
220
251
1
0.200
0.240
157
188
220
251
1.2
0.167
0.200
157
189
220
252
1.5
0.133
0.160
157
188
219
251
1.8
0.111
0.133
157
188
220
251
2
0.100
0.120
157
188
220
251
2.5
0.080
0.096
157
188
220
251
3
0.067
0.080
158
189
220
253
Ultra High Pressure Airbag Class I
0.6
0.500
0.650
236
283
330
--
0.8
0.375
0.488
236
283
330
--
1
0.300
0.390
236
283
330
--
1.2
0.250
0.325
236
283
330
--
1.5
0.200
0.260
236
283
330
--
1.8
0.167
0.217
236
283
331
--
2
0.150
0.195
236
283
330
--
2.5
0.120
0.156
236
283
330
--
Ultra High Pressure Airbag Class II
0.6
1.000
1.300
471
565
660
--
0.8
0.750
0.975
471
565
660
--
1
0.600
0.780
471
565
660
--
1.2
0.500
0.650
471
565
660
--
1.5
0.400
0.520
471
565
660
--
1.8
0.333
0.433
471
565
659
--
2
0.300
0.390
471
565
660
--
2.5
0.240
0.312
471
565
660
--
Overview:

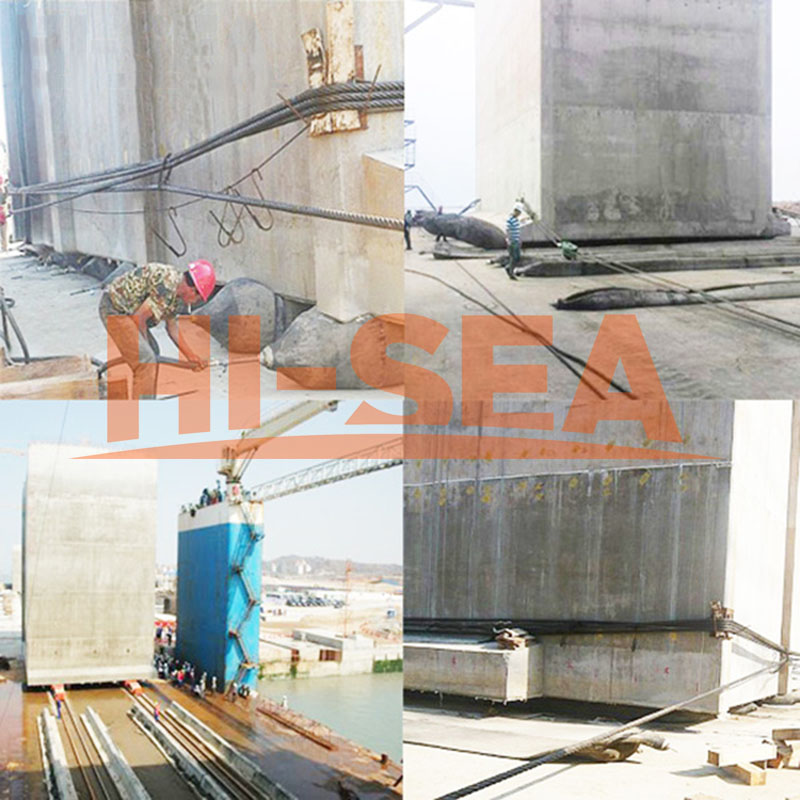

Comparing with the traditional method, this kind of caisson moving airbag is more dominant. The caisson moving airbag is based on the principle of the airbag can be rolled under the condition of airbag is loaded, and use the airbag relay method to move the caisson to the target position. It is convenient and flexible, can be moved laterally, longitudinally, curvedly and even can go through the obstacles such as tracks and ramps.
The caisson moving airbag has a low requirement for the flatness of the ground, which can save the maximum cost and time for users.
Features:
. High safety level;
. Good air tightness;
. Durable aging resistance and anti-wear;
. Flexible and economical;
. Low cost;
. Long lifespan.

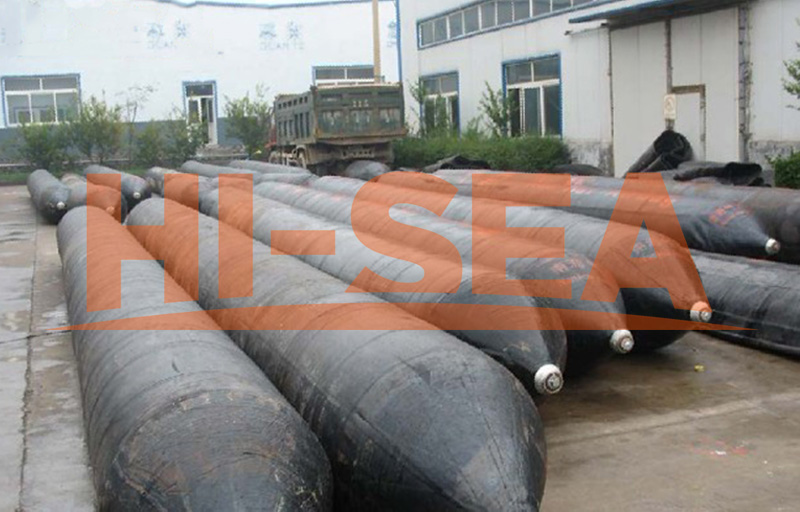

Caisson Moving Airbag in Factory:
