Square Ceiling Air Diffuser

1. Description

Square ceiling air diffuser is a type of ventilation device installed in ceilings to distribute conditioned air throughout a room or building. It is typically made of metal or plastic and features a square or rectangular shape. The diffuser is designed to blend in with the ceiling and deliver air in a controlled manner, ensuring proper airflow and temperature distribution.

2. Key Features

Air Distribution: The diffuser is equipped with multiple slots, perforations, or adjustable louvers to distribute air evenly across the room. This helps to maintain a comfortable and consistent airflow throughout the space.

Dispersal Patterns: The diffuser may have specific dispersal patterns, such as 1-way, 2-way, 3-way, or 4-way, indicating the direction of airflow. For example, a 2-way diffuser disperses air in two opposite directions, while a 4-way diffuser spreads air in all four directions.

Adjustable Louvers: Many square ceiling diffusers have adjustable blades or louvers that allow users to customize the direction and spread of the air. This feature enables the optimization of airflow patterns according to specific room requirements.

Damper Control: Some diffusers may include a built-in damper that allows precise control of airflow volume. The damper can be adjusted to regulate the amount of air entering the space, providing additional flexibility for temperature and ventilation control.

Aesthetic Design: Square ceiling diffusers are designed to integrate seamlessly with the ceiling's aesthetics. They typically have a low-profile design and come in various finishes, such as white, black, or metallic, to match different ceiling styles and interior decor.

3. Available Size

A×B	C×D	Ceiling opening
240×240	356×356	306×306
300×300	416×416	366×366
360×360	476×476	426×426
420×420	536×536	486×486
480×480	596×596	546×546

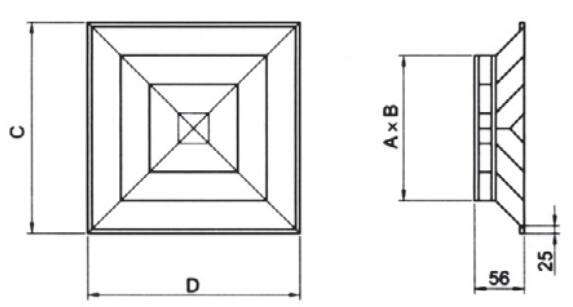

4. Process Drawing
