Ball Marine Air Vent
1. Introduction:
Marine Cabin Unit with Circular Diffuser can be matched with fans, air conditioners and other ventilation equipment.
It is mainly used to adjust the air flow in marine or other buildings which need air ventilation.
2. Features:
The product adopts excellent material, smooth surface without burr, long use time, not easy to rust
Complete production equipment, mature and stable processing technology to ensure stable and reliable product quality
Complete product specifications, support to map processing custom
Manufacturers direct sales, no middlemen to earn price difference, reduce the cost of procurement

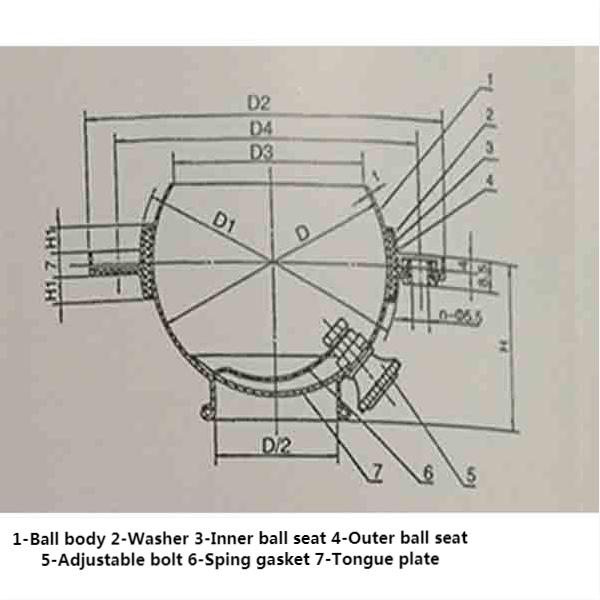

3. Main Parameters:
|
Nom.dia.DN |
Ext.dia of ball D |
Ext.dia of ball D₂ |
D/2 |
Bolt hole center Circle dia D₄ |
H |
Flow-rate m³/h |
|
80 |
80 |
92 |
40 |
107 |
57 |
0-85 |
|
100 |
100 |
107 |
50 |
122 |
62 |
0-100 |
|
150 |
150 |
157 |
75 |
172 |
90 |
0-150 |
|
175 |
175 |
182 |
87.5 |
197 |
115 |
0-175 |
|
200 |
200 |
207 |
100 |
222 |
120 |
0-200 |
|
250 |
250 |
258 |
125 |
278 |
135 |
0-250 |
|
300 |
300 |
310 |
150 |
325 |
148 |
0-300 |

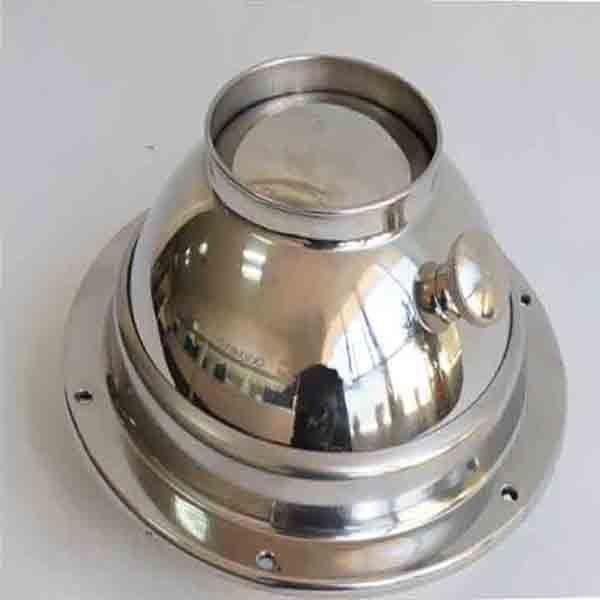

5. Product Showing:
