Explosion-proof Energy-saving LED Light
The Scope of Application:
Widely used for common and working
illumination in areas like ships, and offshore platform
Suitable for areas with energy-saving
projects and difficult to overhaul and replace light
Suitable for moist areas with high
protection requirements
Zone 1 and Zone 2
ⅡA ⅡB ⅡC
T1~T6
Product Characteristic:
Adopt fin-type die casting aluminum
housing. Life span last long.
Anti-glare design, high energy impact
resistance, heat fusion resistance, high light transmittance
Pure flameproof structure, more reliable
explosion-proof performance
Secondary optical distribution system
designed by professional optical software, with reasonable light distribution
and uniform illumination
Patented design protection structure to
ensure normal operation in bad conditions
Production Authentication:
Approved by CCS
Specification:
Model
Power
Voltage
Ex-mark
Light Source
Protection
Class
Material
Weight
Enclosure
BAD85-S20
20
AC220V
Exd ⅡCT6 Gb
LED
IP66
Aluminium
alloy
3.7kg
Ⅰ
BAD85-S30
30
AC220V
Exd ⅡCT6 Gb
LED
IP66
Aluminium
alloy
3.7kg
Ⅰ
BAD85-S50
50
AC220V
Exd ⅡCT6 Gb
LED
IP66
Aluminium
alloy
6.8kg
Ⅱ
BAD85-S70
70
AC220V
Exd ⅡCT6 Gb
LED
IP66
Aluminium
alloy
6.8kg
Ⅱ
BAD85-S100
100
AC220V
Exd ⅡCT6 Gb
LED
IP66
Aluminium
alloy
7.8kg
Ⅲ
BAD85-S120
120
AC220V
Exd ⅡCT6 Gb
LED
IP66
Aluminium
alloy
7.8kg
Ⅲ

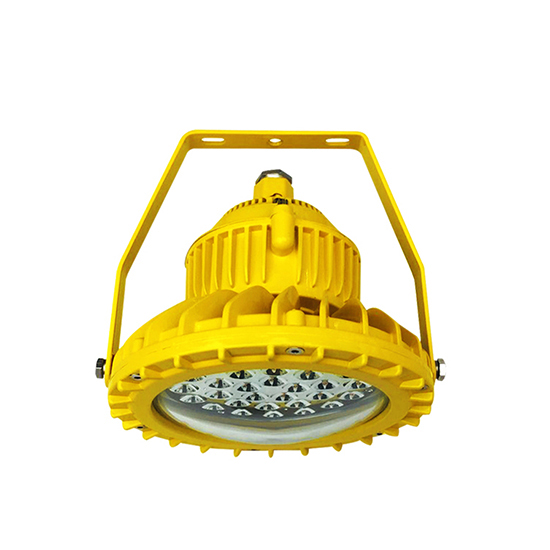

Explosion-proof Energy-saving LED Light BAT95-G:
