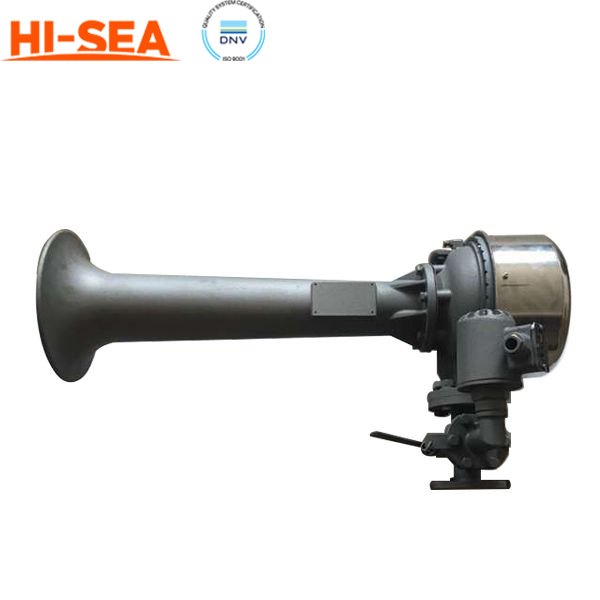

WKD-ⅠAutomatic Control Air Horn For Fog Navigation
Description:
WKD-ⅠAutomatic Control Air Horn For Fog Navigation is the diaphragm vibration pronunciation type. It is powered by compressed air, which pushes the diaphragm to vibrate and makes a whistle sound.
Detailed information:
Type: WKD-Ⅰ
Specification:Used with the automatic controller
Rated voltage of power box: AC110/AC220/DC110/DC220/DC24V
Air horn control mode: Electric/manual
|
Parameter of WKD-Ⅰ Automatic Control Air Horn For Fog Navigation
|
|
|
Type |
WKD-Ⅰ |
|
Voltage of magnetic valve |
DC220V/DC110V |
|
Power consumed for magnetic valve |
45W |
|
Normal diameter |
25mm |
|
Air pressure |
0.7-1.0Mpa |
|
Audibility |
1.0mile |
|
1/3 octave band level at 1 meter |
≧130dB |
|
Center frequency |
315Hz |
|
Length of vessel |
20≤L<75m |
|
Air Consumed |
≦8.3×10-3 |
|
Voltage of heater |
AC220V |
|
Power Consumed of heater |
200W |
|
Weight |
45kg |
More information about marine air horn, please click: Marine Air Horn
