The Scope of Application:
The product is a white flash solar
luminaire. The luminaire is arranged on both sides of the inland river channel
and can emit a gradual omnidirectional white flash. It can mark the direction,
boundary and obstacles of the inland waterway and reveal the information about
the navigation channel. Ship navigation points to a safe and economical
navigation channel, and is an important navigation aid for ships sailing safely
in the river.
Product Characteristic:
The service life can reach more than
100,000 hours, the optical effect is good, the light source conversion
efficiency is high, the rated power is only 0.15W, and the energy saving effect
is obvious. Small size, light weight, easy to transport and installation. After
being fully charged, it can work continuously for more than 12 days.
Adopt Standard:
"General technical conditions for
navigation lights" JT/T761-2009
Product Specification:
|
Model |
XB-HB1LT |
|
Product Size |
190*190*115 |
|
Effective Light Intensity |
≥20000mcd |
|
Color |
white |
|
Illumination mode |
Slow flash |
|
Light source life (h) |
100000 |
|
power input |
DC:3.6V |
|
Solar panels |
6V/1.5W |
|
Rated power (W) |
0.15W |
|
Protection Class |
IP68 |
|
Ambient temperature (°C) |
-20~+70 |
|
Environment humidity (%) |
0~95 |
|
Wind resistance (M/S) |
≥80 |
Light Output
NFS1803
Colors
red, amber, white and green
Working state
Steady on/ Flash
Flash frequency
35-40times/min (adjustable)
Visibility
4nm
Vertical Divergence
Vertical Divergence
Latitude Range
±7.5° at 50% intensity
On/Off Level
60/100 Lux
Lifespan of LEDS
up to 100,000 Hours
Temperature Range
-40℃ to +80℃
Waterproof
IP67
Optional Functions
GPS wireless synchronization/ location
Construction
Lens material
Polycarbonate
Base
material
cast-aluminums
Switch material
Stainless Steel
Weight
1.8kg
Power
supply mode
SOLAR
Mono panel: 2W
Replaceable LiFePO4：3.7V8.8Ah
Peak intensity：＞45cd
Minimum Autonomy：250hours
DC
Power：≤40W
intensity ：≤2500cd

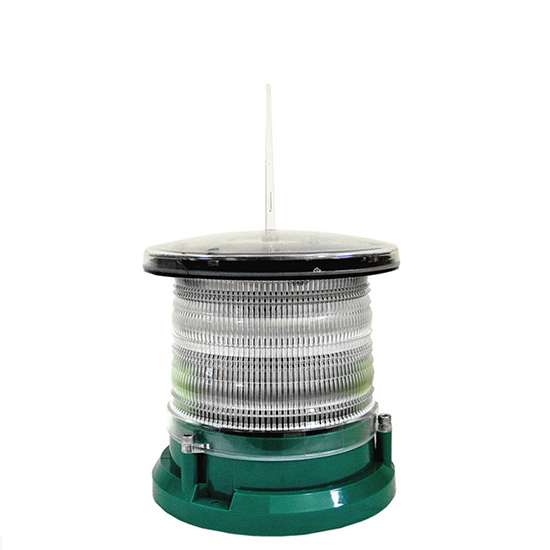

Photo One of Solar Navigation Lantern:

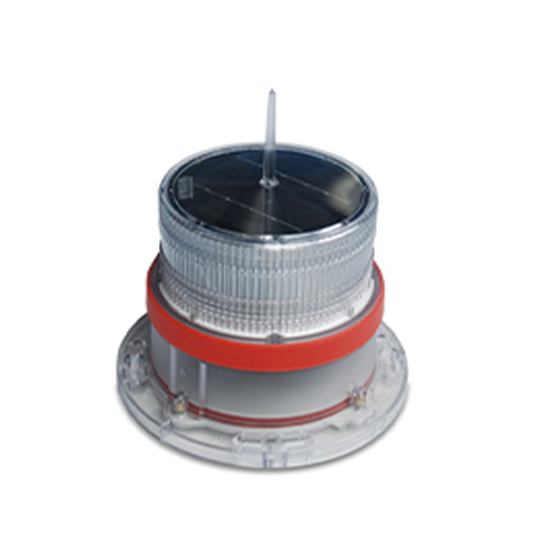

Photo Two of Solar Navigation Lantern:

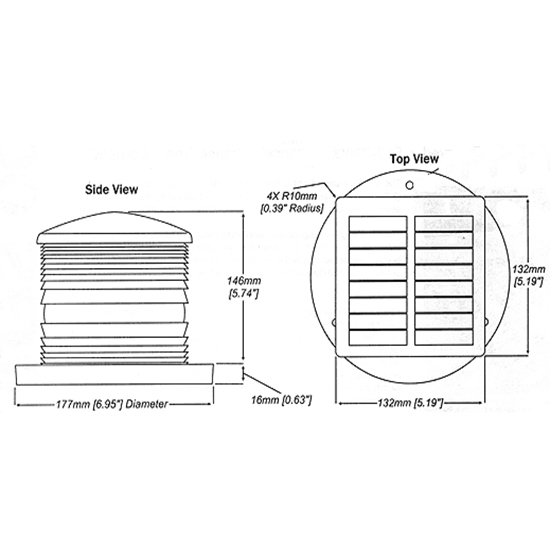

Drawing of Solar Navigation Lantern:
