JVT Type Lever Hoist
Product Characteristic：
Capacity from 0.25T to 6T, Minimum headroom required and very versatile in operation
Automatic double-pawl braking system
Chain guides provide smooth chain operation.
Roller bearing supported load sheaves for avoiding abrasion
G80 Chain is made of special alloy steel that is exclusively
Drop forged kooks to ensure superior quality and safety
The lever hoist static test is 4 times of capacity, and running test is 1.5 times of capacity one by one
Product Specification:
|
Model |
VA0.25 |
VA0.5 |
VA0.75 |
VA1 |
VA1.5 |
VA2 |
VA3 |
VA6 |
|
Capacity t |
0.25 |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
6 |
|
Standard Lift m |
1 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5
|
1.5 |
|
Running test load t |
0.375 |
0.75 |
1.13 |
1.5 |
2.25 |
3 |
4.5 |
9 |
|
Min distance between hooks |
|
|
325 |
335 |
380 |
380 |
480
|
620 |
|
Effort required to lift max load N |
|
|
140 |
140 |
220 |
220 |
320 |
3404 |
|
Diameter of load chain mm |
4 |
5 |
6 |
6 |
8 |
8 |
10 |
10 |
|
Net weight kg |
|
|
7 |
7.5 |
11 |
12 |
21 |
31 |
|
Extra weight per meter of extra lift cm |
|
|
0.92 |
0.92 |
1.6 |
1.6 |
2.4 |
4.8 |

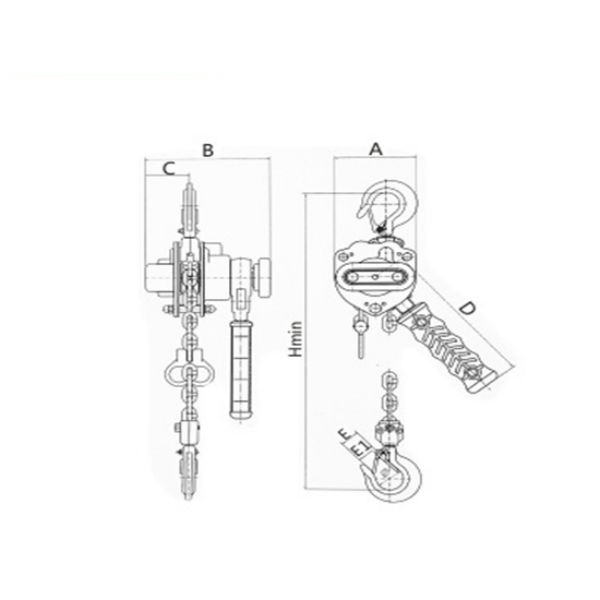

Drawing of JVT Type Lever Hoist:
