15T Hydraulic Slewing Crane
Application
A 15T hydraulic slewing crane is a type of marine crane that is designed to lift and move heavy loads with precision and flexibility. The 15T indicates a lifting capacity of 15 metric tons or 33,000 pounds. Safety is a critical consideration when operating a 15T hydraulic slewing crane, as accidents can result in serious injury or damage to equipment. Proper training and maintenance are essential to ensure safe and efficient operation. The crane should also be equipped with safety features such as overload protection, emergency stop buttons, and warning signals. It is important to follow all relevant regulations and guidelines when using a hydraulic slewing crane, including those related to weight limits, load distribution, and crane stability.
Material
Aluminum, carbon steel and stainless steel.
Advantages and Features
1. Contract structure, high strength;
2. Reliable service, high security;
3. Easy installation, low maintenance;
4. Corrosion resistance, long lifespan;
5. Excellent operation, exquisite appearance;
6. Low power consumption, high efficiency;
7. Automatic & manual overload protection system;
8. Can be customized according to your requirements;
9. Certificate: IRS, BV, LR...

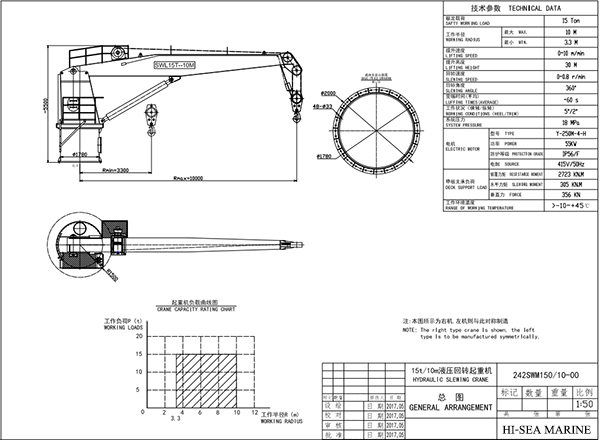

Drawing of 15T Hydraulic Slewing Crane
Main Specification
SWL
15T
Working Radius
3.3-10m
Hoisting Speed
0~10m/min
Hoisting Height
30m
Slewing Speed
0~0.8r/min
Slewing Angle
360°
Luffing Time(average)
~60s
Tirm
≤2°
Heel
≤5°
Motor Power
55KW
System presure
18MPa
Power source
415V, 60Hz
Protect Class
IP56
Insulate Class
F
Range of working temperature
＞-10~+45°C

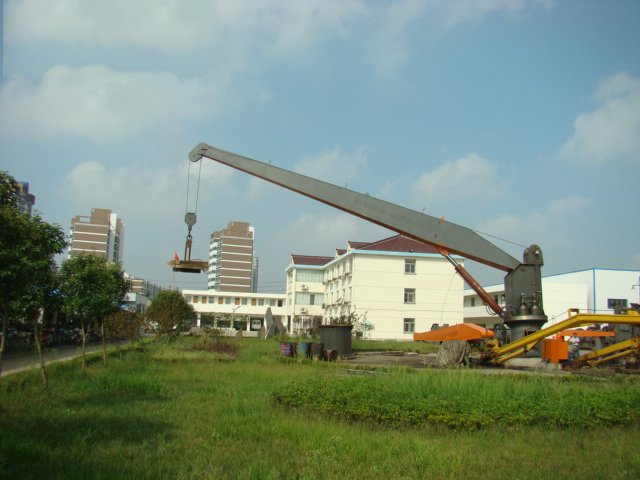

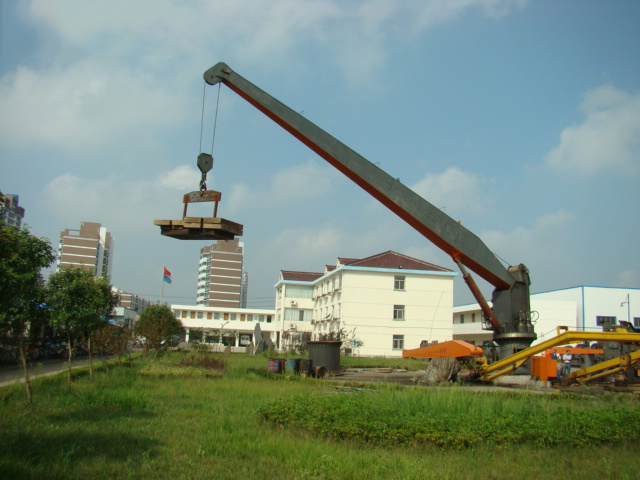

Testing Images of 15T Hydraulic Slewing Crane
