Marine DIN Bronze Fire Valve
1. Application
Marine DIN Bronze Fire Valves are specialized valves designed for use in marine applications to control the flow of water in firefighting systems. These valves are made from high-quality marine-grade bronze, which makes them resistant to corrosion in saltwater environments.
2. Material
(1) -body & bonnet: bronze
(2) -stem, disc, coupling: brass
(3) -sealing ring: NBR
(4) -handwheel: bronze
The material can be customed according to your needs.
3. Nominal Diameter & Pressure
Diameter: DN40--DN65
Pressure: PN16
4. Features
Construction: Marine DIN Bronze Fire Valves are constructed using marine-grade bronze, which makes them highly resistant to corrosion in saltwater environments. The valves are built to last, and their sturdy construction ensures they can withstand the rigors of marine environments.
Functionality: These valves are designed to control water flow in firefighting systems onboard marine vessels. They are usually installed in conjunction with fire pumps, hydrants, and other firefighting equipment to ensure efficient water delivery to the fire.
Easy to operate: Marine DIN Bronze Fire Valves are user-friendly, with easy-to-operate handles that provide quick and efficient operation during emergencies.

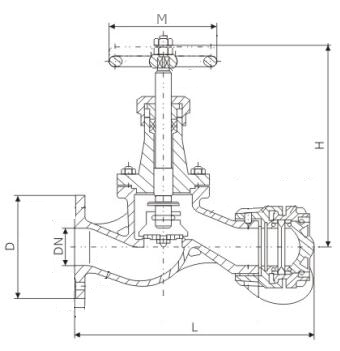

5. Main Size List
|
CODE |
DN |
Size mm |
Weight Kgs |
|||
|
D |
L |
H |
M |
|||
|
75 60 51 52 53 |
40 50 65 |
150 165 185 |
168 185 222 |
160 175 205 |
140 140 160 |
6.0 6.5 10.4 |
6. IACS Certificate: CCS, ABS, BV, LR, RINA.
