Marine Class 150 Plate Check Valve
1. Application
The valve is used for shipbuilding, ship repair and oil platform with high quality.

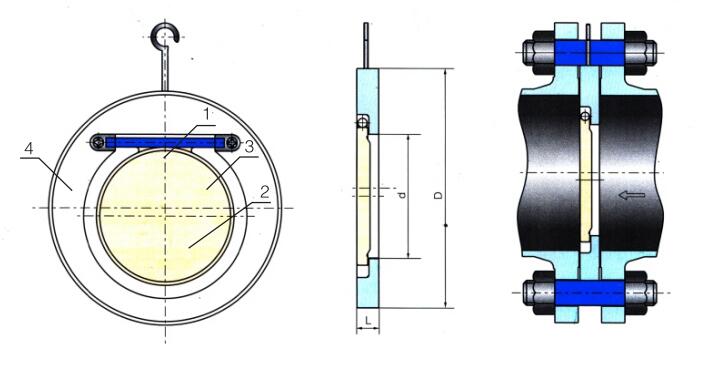

2. Material
(1). - Body: cast steel
(2). - Disc: cast steel
(3). - Bearing: stainless steel
(4). - Plug: steel
3. Nominal Diameter ＆ Pressure
Diameter: 50~600
Pressure:150
4. Features
(1). Various style for each products and completely series pneumatic products for you to choose from.
(2). OEM,ODM service is acceptable.Customer's special requirements will be satisfied in our factory.
(3). We have nearly 10 years experiences on valves exporting.
5. Main Size List
|
150LB |
NPS |
DN |
d |
L |
D |
|
2 |
50 |
30 |
19 |
104 |
|
|
2-1/2 |
65 |
40 |
19 |
123 |
|
|
3 |
80 |
52 |
19 |
136 |
|
|
4 |
100 |
71 |
19 |
174 |
|
|
5 |
125 |
93 |
19 |
196 |
|
|
6 |
150 |
114 |
22 |
221 |
|
|
8 |
200 |
157 |
29 |
278 |
|
|
10 |
250 |
195 |
29 |
339 |
|
|
12 |
300 |
230 |
38 |
409 |
|
|
14 |
350 |
270 |
44 |
449 |
|
|
16 |
400 |
310 |
51 |
512 |
|
|
18 |
450 |
360 |
60 |
548 |
|
|
20 |
500 |
406 |
64 |
606 |
|
|
24 |
600 |
490 |
70 |
716 |
6. IACS Certificate: RINA, ABS, BV, CCS, DNV-GL, LR.
