Marine Class 150 Angle SDNR Valve
1. Application
The valve is used for shipbuilding, ship repair and oil platform with high quality.
2. Nominal Diameter ＆ Pressure
Diameter: contact us if you need the detailed data
Pressure: 150
3. Features
(1). OEM,ODM service is acceptable.Customer's special requirements will be satisfied in our factory.
(2). Sample order & small quantity order is ok.
(3). Excellent quality control is one of our main principles.

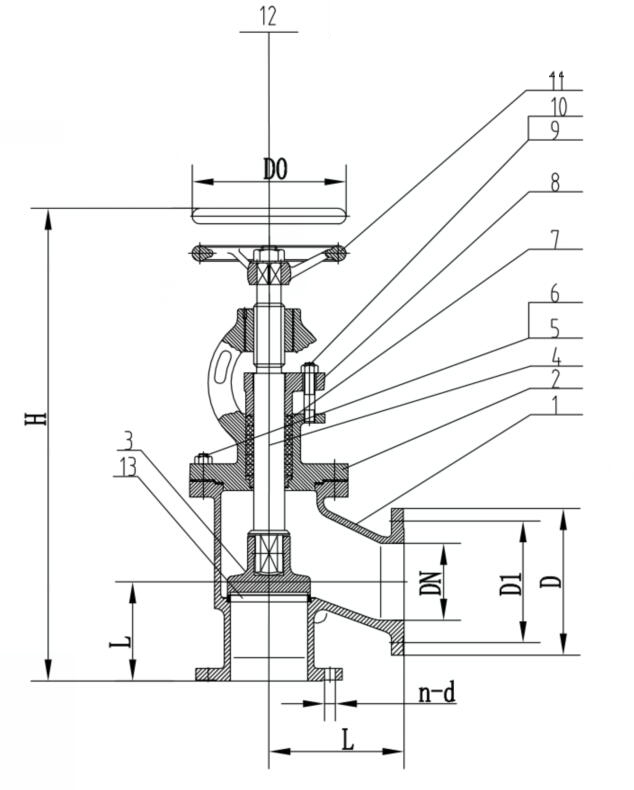

4. Material
|
NO. |
PART NAME |
QTY |
MATERIAL |
|
|
1 |
BODY |
1 |
ASTM B148 UNS C95800 |
|
|
2 |
BONNET |
1 |
ASTM B148 UNS C95800 |
|
|
3 |
DISC |
1 |
ASTM B148 UNS C95800 |
|
|
4 |
STEM |
1 |
QA19-2 / CA103 / UNSC62300 |
|
|
5 |
STUD |
8 |
ASTM A193-B7 |
Zinc plated |
|
6 |
NUT |
8 |
ASTM A194-2H |
Zinc plated |
|
7 |
PACKING |
1 |
PTFE Packing |
|
|
8 |
GLAND FLANGE |
1 |
ASTM B148 UNS C95800 |
|
|
9 |
STUD |
2 |
ASTM A193-B7 |
|
|
10 |
NUT |
2 |
ASTM A194-2H |
|
|
11 |
HANDWHEEL |
1 |
ASTM A48 N030A |
|
|
12 |
NUT |
1 |
ASTM A194-2H |
|
|
13 |
SEAT |
1 |
ASTM B148 UNS C95800 |
|
5. IACS Certificate: DNV-GL, LR, RINA, ABS, BV, CCS.
