CB T309-1999 Marine Bronze Female Thread Stop Valve
1. Application
CB T309-1999 Marine Bronze Female Thread Stop Valve can used in installations where internal or external corrosion is undersirable and heavy pattern for ship building industry.
2. Material
(1) body & cover & disc: cast tin bronze
(2) stem: aluminum bronze
The material of this product can be made to order, for example:cast steel, stainless steel 304, stainless steel 316L etc.
3. Technical Data
(1) nominal pressure(MPa): 1.6
(2) nominal diameter(mm): 6~50
4. Features
(1) Excellent quality and beautiful shape.
(2) Applicable to a variety of medium.

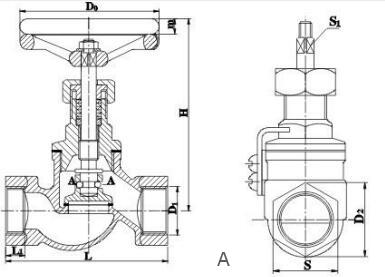

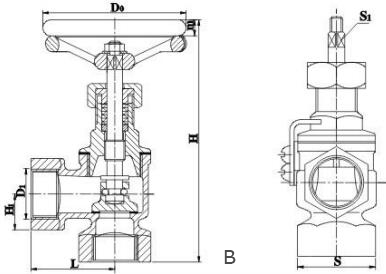

5. Dimensions(mm)
DN
(mm)
Structure dimension
Thread joint
Life
Range
m
Weight(kg)
L
H
H1
D1
S
L1
D0
S1
A
B
A
B
A
B
6
65
-
86
-
-
G¼
19
10
50
6
5
0.35
-
10
75
-
88
-
-
G⅜
22
12
50
6
5
0.44
-
15
84
35
100
125
35
G½
27
14
50
6
6
0.56
0.53
20
95
40
112
143
40
G¾
36
16
65
7
7
0.9
0.91
25
110
45
125
158
45
G1
41
18
80
8
8
1.26
1.26
32
130
54
139
176
54
G1¼
50
20
80
8
8
2.02
2.02
40
150
65
155
220
65
G1½
60
22
120
11
14
2.93
2.93
50
180
80
175
283
80
G2
70
24
120
11
15
4.37
3.83
6. IACS Certificate: RINA, NK, LR, KR, DNV, BV, CCS, ABS.
