CB T907-94 Marine Bronze Angle Safety Valve
1. Application
CB T907-94 Marine Bronze Angle Safety Valve apply to sea water, fresh water, lubricanting oil and fuel oil.
2. Material
(1) body: cast aluminum bronze
(2) cover & stem: aluminum bronze
the materials mentioned before are basic materials, ship-owners can choose other materials.
3. Technical Data
nominal diameter(mm): 10~25
4. Features
(1) Excellent quality and beautiful shape.
(2) Applicable to a variety of medium.

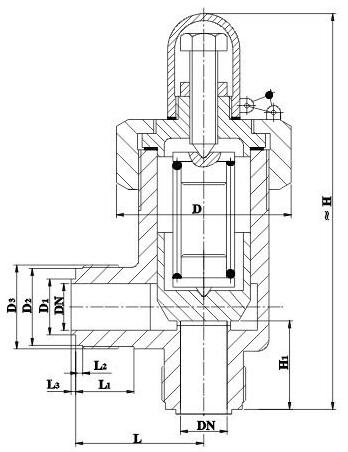

5. Dimensions(mm)
PN
(MPa)
DN
(mm)
Structure dimension
Flange connection dimension
L
D
H1
H
D1
D2
D3
L1
L2
L3
0.1~0.25
10
40
55
30
138
13
19.8
M22×1.5
17
2
2
>0.25~06
10
40
55
30
138
13
19.8
M22×1.5
17
2
2
>0.6~0.9
10
40
55
30
138
13
19.8
M22×1.5
17
2
2
>0.9~1.2
10
40
55
30
140
13
19.8
M22×1.5
17
2
2
>1.2~1.6
10
40
55
30
140
13
19.8
M22×1.5
17
2
2
>1.6~2.5
10
42
55
34
146
14
24.8
M27×1.5
19
3
3
>2.5~3.2
10
42
55
34
149
14
24.8
M27×1.5
19
3
3
0.1~0.25
15
48
58
40
148
19
27.0
M30×2
23
3
2
>0.25~06
15
48
58
40
148
19
27.0
M30×2
23
3
2
>0.6~0.9
15
48
58
40
148
19
27.0
M30×2
23
3
2
>0.9~1.2
15
48
58
40
155
19
27.0
M30×2
23
3
2
>1.2~1.6
15
48
58
40
155
19
27.0
M30×2
23
3
2
>1.6~2.5
15
50
58
45
162
22
33.0
M36×2
26
5
3
>2.5~3.2
15
50
58
45
162
22
33.0
M36×2
26
5
3
0.1~0.25
20
55
72
44
170
24
33.0
M36×2
23
3
2
>0.25~06
20
55
72
44
170
24
33.0
M36×2
23
3
2
>0.6~0.9
20
55
72
44
170
24
33.0
M36×2
23
3
2
>0.9~1.2
20
55
72
44
170
24
33.0
M36×2
23
3
2
>1.2~1.6
20
55
72
44
170
24
33.0
M36×2
23
3
2
>1.6~2.5
20
60
72
48
176
25
36.0
M39×2
27
5
3
>2.5~3.2
20
60
72
48
186
25
36.0
M39×2
27
5
3
0.1~0.25
25
60
80
46
190
29
39.0
M42×2
24
3
2
>0.25~06
25
60
80
46
190
29
39.0
M42×2
24
3
2
>0.6~0.9
25
60
80
46
190
29
39.0
M42×2
24
3
2
>0.9~1.2
25
60
80
46
190
29
39.0
M42×2
24
3
2
>1.2~1.6
25
60
80
46
197
29
39.0
M42×2
24
3
2
>1.6~2.5
25
67
80
55
203
32
45.0
M48×2
30
6
3
>2.5~3.2
25
67
80
55
210
32
45.0
M48×2
30
6
3
6. IACS Certificate: BV, RINA, LR, KR, DNV, CCS, NK, ABS.
