CB T692-94 Oil Tank Breather Valve
1. Application
CB T692-94 Oil Tank Breather Valve with excellent quality can be apply to pressure vacuum tube road breathing freely.
2. Material
(1) body & cover: cast steel
(2) guide rod: stainless steel
(3) stem: aluminum bronze
The material of this product can be made to order, for example:cast iron, stainless steel 304, stainless steel 316L etc.
3. Technical Data
(1) nominal pressure(MPa): ≤0.021 (pressure valve); <-0.007 (vacuum valve)
(2) nominal diameter(mm): 80/100, 100/150
4. Features
(1) Strict quality control to ensure product quality.
(2) Flexible customization according to business requirements.

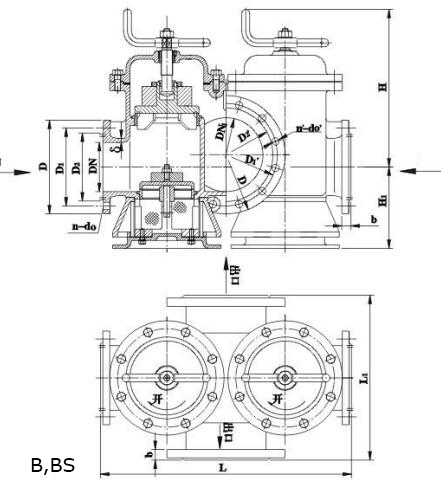

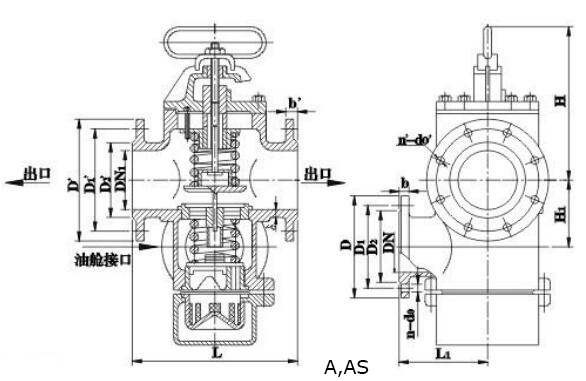

5. Dimensions(mm)
DN
(mm)
Structure dimension
H
H1
L
L1
thickness
A
B
A
B
A
B
A
B
Cast iron
Cast steel
80/100
248
330
100
10
260
380
135
220
8
6
100/150
290
500
136
25
300
500
140
304
9
7
DN
(mm)
Flange dimension
Oil-tank connection flange
bolt
Outlet flange
bolt
D
D1
D2
b
d0
n
Th.
D’
D1’
D2’
b’
d0’
n
Th.
80/100
170
138
118
14
15
8
M14
190
158
138
14
15
8
M14
100/150
190
158
138
240
208
190
12
6. IACS Certificate: BV, RINA, LR, KR, DNV, NK, CCS, ABS.
