Circular Duct Fan

Introduction:

A circular duct fan, also known as a centrifugal fan or a blower, is a type of fan that is designed to move air or gas through a circular duct. The fan consists of a housing, an impeller, and a motor.

The housing of the fan is typically made of metal or plastic and is designed to fit into a circular duct. The impeller, which is also known as the blade or the rotor, is located inside the housing and is responsible for moving the air or gas. The impeller consists of a series of blades that are curved in such a way that they create a low-pressure area behind them, which draws air or gas into the fan.

The motor of the fan is usually located outside the housing and is connected to the impeller through a shaft. When the motor is turned on, it spins the impeller, which in turn moves the air or gas through the duct.

Circular duct fans are commonly used in HVAC systems to circulate air through a building. They can also be used in industrial applications to move gases through a process or to ventilate an area. The performance of a circular duct fan is typically measured in terms of its airflow rate, which is the volume of air or gas that the fan can move per unit time, and its pressure, which is the force that the fan can generate to move the air or gas through the duct.

Feature:

1. Impeller design: The impeller of a circular duct fan is designed to create a low-pressure area that draws air or gas into the fan. The curvature of the blades and the spacing between them can be optimized for specific applications to maximize the airflow rate and pressure generated by the fan.

2. Housing design: The housing of a circular duct fan is designed to fit into a circular duct and to minimize air leakage. The housing can be made of different materials, such as metal or plastic, depending on the application.

3. Motor: The motor of a circular duct fan can be located inside or outside the housing and can be powered by electricity or other energy sources. The motor can be designed to operate at different speeds and to provide different levels of power, depending on the application.

4. Control options: Circular duct fans can be equipped with various control options, such as variable speed drives or electronic controllers, that allow the fan to be adjusted for different operating conditions.

5. Noise reduction: Circular duct fans can be designed with features that reduce noise, such as insulated housings or vibration dampening mounts, to minimize the impact of the fan on the surrounding environment.

6. Maintenance requirements: Circular duct fans can be designed with features that make them easy to maintain, such as quick-release mechanisms for the impeller or easily accessible motor components. Regular maintenance can help ensure the longevity and efficiency of the fan.

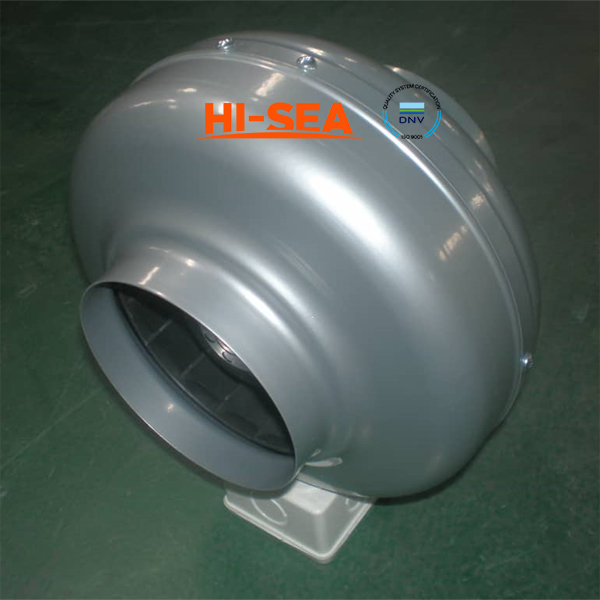

Product Showing:
