CSGB Marine Vertical Fire Pump
Description:
CSGB Series marine vertical centrifugal fire pump, motor with YH Series motor, a pump adopts the detachable structure, solve the replacement of high-power pump bearings, mechanical seal, impeller wearing parts such as the problem of the inconvenient.
It can be used as various ship ballast pump, bilge pump, drainage pump, cooling pump, fire pump, and is also suitable for the petrochemical pipe City, high-rise building water and circulation system of the booster pump.
Certificate: CCS, ISO, etc.
Model Explanation: CSGB 50-160 (I) A(B, C)
|
Picture of CSGB type fire pump |
Explanation detail |
|
|
CSGB—Marine vertical removable pipeline centrifugal pump |
|
50—Inlet and outlet diameter 50 mm |
|
|
160—Nominal diameter of impeller 160mm |
|
|
I—Flow classification |
|
|
A(B, C)—Impeller processed with 1（2, 3）cutting |
The advantage of CSGB marine vertical fire pump:
Specification of the CSGB marine vertical fire pump:
① Dust-proof and waterproof:protection grade IP54, fully enclosed structure;
② Quieter: the pump and motor install the same shaft with low noise; the shape of the motor heat sink is reasonable; the high-quality shaft with less noisy; the large-diameter impeller is strictly balanced, and the vibration is damped;
③ More energy-saving: the efficiency of the upgraded motor increases by 2-4%; the impeller with special structure, excellent hydraulic model,
④ The diameter of the inlet and outlet of the pump is on the same horizontal line, the liquid flows smoothly, and the loss is small, which ensures the best performance of the pump;
⑤ The maximum operating temperature of the motor is adapted to higher 30℃than that of the ordinary Y motor;
⑥ More than twice the service life of the shaft seal: bellows seal, forced circulation system, no leakage;
⑦ The base area is greatly reduced: the independent installation structure does not require a base plate .
Parameter of CSGB Marine Vertical Fire Pump：
|
CSGD |
50HZ |
60HZ |
50HZ/60HZ |
||||||||
|
Type |
Capacity (m3/h) |
Head (m) |
Speed (rpm) |
Motor power (kW) |
Weight (kg) |
Capacity (m3/h) |
Head (m) |
Speed (rpm) |
Motor power (kW) |
Efficiency (%) |
(NPSH)r (m) |
|
40-100 |
2.2 |
3.3 |
1400 |
0.12 |
17 |
2.6 |
4.8 |
1710 |
0.18 |
48 |
2.5 |
|
3.2 |
3 |
3.8 |
4.3 |
||||||||
|
4.2 |
2.8 |
5 |
4 |
||||||||
|
40-125 |
2.2 |
5.5 |
1400 |
0.18 |
19 |
2.6 |
7.9 |
1710 |
0.25 |
40 |
2.5 |
|
3.2 |
5 |
3.8 |
7.2 |
||||||||
|
4.2 |
4.5 |
5 |
6.5 |
||||||||
|
40-125A |
2 |
4.4 |
1400 |
0.12 |
19 |
2.4 |
6.3 |
1710 |
0.18 |
39 |
2.5 |
|
2.8 |
4 |
3.4 |
5.8 |
||||||||
|
3.7 |
3.6 |
4.4 |
5.2 |
||||||||
|
40-160 |
2.2 |
8.5 |
1400 |
0.25 |
24 |
2.6 |
12.2 |
1710 |
0.37 |
36 |
2.5 |
|
3.2 |
8 |
3.8 |
11.5 |
||||||||
|
4.2 |
7.5 |
5 |
10.8 |
||||||||
|
40-160A |
2 |
6.8 |
1400 |
0.18 |
22 |
2.4 |
9.8 |
1710 |
0.25 |
35 |
2.5 |
|
2.8 |
6.4 |
3.4 |
9.2 |
||||||||
|
3.7 |
6 |
4.4 |
8.6 |
||||||||
|
40-200 |
2.2 |
13 |
1450 |
0.55 |
38 |
2.6 |
18.7 |
1800 |
0.75 |
31 |
2.5 |
|
3.2 |
12.5 |
3.8 |
18 |
||||||||
|
4.2 |
12 |
5 |
17.3 |
||||||||
|
40-200A |
2 |
10.4 |
1400 |
0.37 |
30 |
2.4 |
15 |
1710 |
0.55 |
30 |
2.5 |
|
2.8 |
10 |
3.4 |
14.4 |
||||||||
|
3.7 |
9.6 |
4.4 |
13.8 |
||||||||
|
40-250 |
2.2 |
20.5 |
1450 |
1.1 |
52 |
2.6 |
29.5 |
1800 |
1.5 |
25 |
2.5 |
|
3.2 |
20 |
3.8 |
28.8 |
||||||||
|
4.2 |
18.5 |
5 |
26.6 |
||||||||
|
40-250A |
2 |
16.4 |
1450 |
0.75 |
47 |
2.4 |
23.6 |
1800 |
1.1 |
25 |
2.5 |
|
2.8 |
16 |
3.4 |
23 |
||||||||
|
3.7 |
15 |
4.4 |
21.6 |
||||||||
|
40-250B |
1.6 |
13.2 |
1450 |
0.55 |
46 |
1.9 |
19 |
1800 |
0.75 |
24 |
2.5 |
|
2.3 |
13 |
2.8 |
18.7 |
||||||||
|
3.4 |
12 |
4.1 |
17.3 |
||||||||
|
40-100(I) |
3.8 |
3.4 |
1400 |
0.12 |
17 |
4.6 |
4.9 |
1710 |
0.18 |
54 |
2.5 |
|
6.3 |
3 |
7.6 |
4.3 |
||||||||
|
7.5 |
2.8 |
9 |
4 |
||||||||
|
40-125(I) |
3.8 |
5.4 |
1400 |
0.25 |
29 |
4.6 |
7.8 |
1710 |
0.37 |
54 |
2.5 |
|
6.3 |
5 |
7.6 |
7.2 |
||||||||
|
7.5 |
4.6 |
9 |
6.6 |
||||||||
|
40-125(I)A |
3.4 |
4.3 |
1400 |
0.18 |
24 |
4.1 |
6.2 |
1710 |
0.25 |
52 |
2.5 |
|
5.6 |
4 |
6.7 |
5.8 |
||||||||
|
6.7 |
3.7 |
8 |
5.3 |
||||||||
|
40-160(I) |
3.8 |
8.5 |
1450 |
0.55 |
43 |
4.6 |
12.2 |
1800 |
|
47 |
2.5 |
|
6.3 |
8 |
7.6 |
11.5 |
||||||||
|
7.5 |
7.5 |
9 |
10.8 |
||||||||
|
40-160(I)A |
3 |
5.6 |
1400 |
0.25 |
30 |
3.6 |
8.1 |
1710 |
0.37 |
45 |
2.5 |
|
5.1 |
5.3 |
6.1 |
7.6 |
||||||||
|
6.1 |
4.9 |
7.3 |
7.1 |
||||||||
|
40-200(I) |
3.8 |
13.1 |
1450 |
0.75 |
45 |
4.6 |
18.9 |
1800 |
1.1 |
40 |
2.5 |
|
6.3 |
12.5 |
7.6 |
18 |
||||||||
|
7.5 |
12 |
9 |
17.3 |
||||||||
|
40-200(I)A |
3.3 |
10 |
1450 |
0.55 |
44 |
4 |
14.4 |
1800 |
0.75 |
39 |
2.5 |
|
5.5 |
9.5 |
6.6 |
13.7 |
||||||||
|
6.5 |
9 |
7.8 |
13 |
||||||||

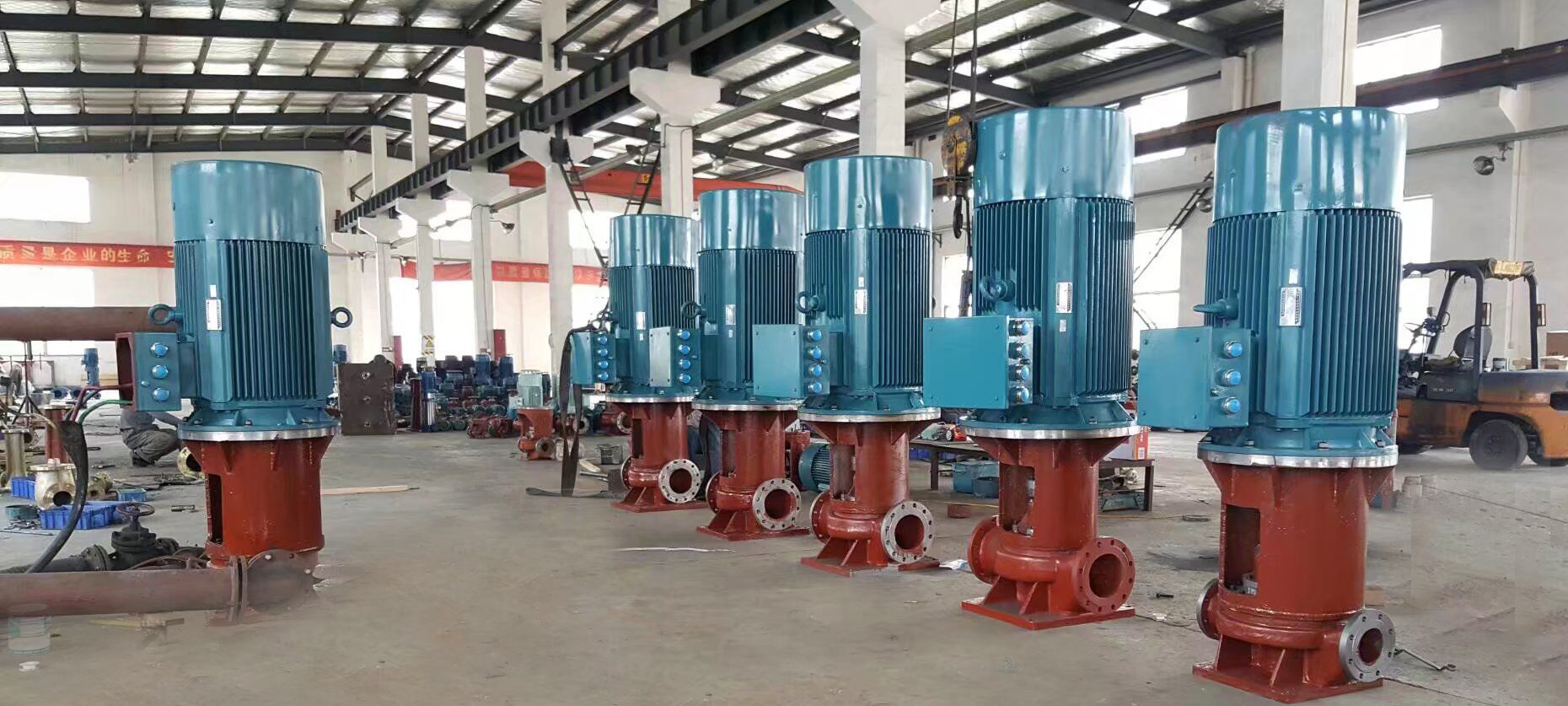

Photo of CSGB Marine Vertical Fire Pump：
