JIS F2014-1987 Single Roller Fairlead
Application:
This kind of roller fairlead is a single roller without a base. And two or three can be used in one group to guide ropes. Besides, this products obtain CCS and BV certificates and other certificates. We can provide both standard and customized type fairleads for your requirement. Please contact us if you are interested in any of our products.
Drawing of JIS F2014-1987 Single Roller Fairlead:
Parameters of JIS F2014-1987 Single Roller Fairlead:
|
Roller Dia. (mm) |
Applicable Dia. Of Rope |
a |
b |
C |
C1 |
d |
R |
D1 |
H |
S |
Weight (kg) |
|||||
|
GB1102 Wire Rope 1520N/mm² |
Hemp Rope |
Synthetic Fiber Rope |
Cast Iron (HT) |
Cast Steel (ZG) |
||||||||||||
|
6X24 |
6X30 |
6X37 |
||||||||||||||
|
100 |
11 |
11 |
11 |
40 |
28 |
60 |
125 |
8 |
6 |
48 |
30 |
160 |
128 |
3 |
9.4 |
9.9 |
|
150 |
17 |
17.5 |
15 |
45 |
32 |
75 |
190 |
12 |
8 |
71 |
40 |
240 |
211 |
3 |
32.1 |
33.8 |
|
200 |
22.5 |
21.5 |
19.5 |
55 |
40 |
85 |
230 |
14 |
10 |
95 |
40 |
310 |
251 |
3 |
64.6 |
68.0 |
|
250 |
24 |
26 |
24 |
65 |
45 |
100 |
265 |
14 |
10 |
107 |
40 |
380 |
298 |
4 |
108 |
114.0 |
|
300 |
30 |
32.5 |
28 |
70 |
50 |
100 |
320 |
16 |
14 |
127 |
60 |
440 |
321 |
4 |
159 |
168.0 |
|
350 |
37.5 |
39 |
34.5 |
75 |
55 |
100 |
350 |
18 |
14 |
144 |
60 |
500 |
346 |
4 |
235 |
248.0 |
|
400 |
41 |
39 |
39 |
85 |
65 |
100 |
380 |
20 |
16 |
161 |
60 |
560 |
371 |
5 |
336 |
355.0 |
|
450 |
44.5 |
47.5 |
43 |
95 |
80 |
100 |
410 |
20 |
16 |
180 |
60 |
620 |
394 |
5 |
413 |
462.0 |
Model Type: Single Roller Fairlead;
Material: Cast Steel;
Roller Dia.: 100mm-450mm;
Roller Qty.: 1;
Standard: JIS F2014-1987.

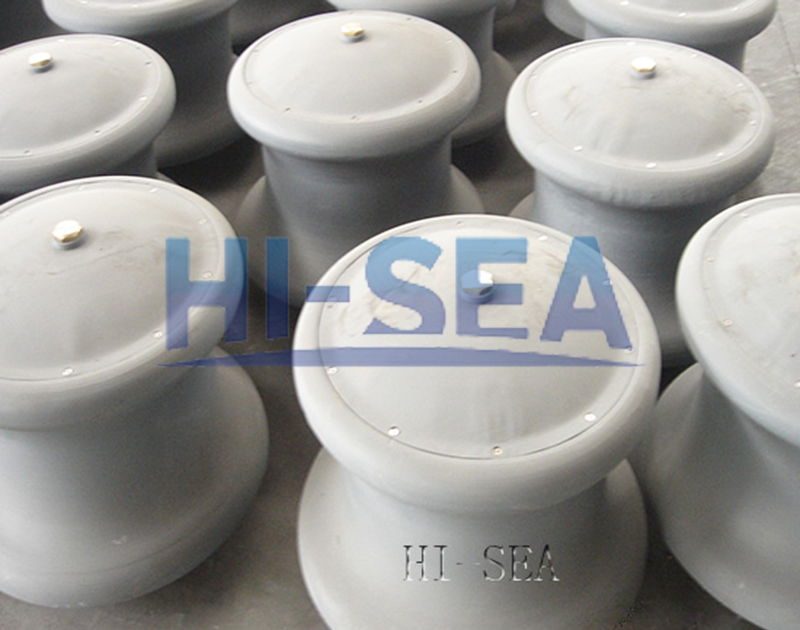

JIS F2014-1987 Single Roller Fairlead in Factory:
