Solid Float Rubber Oil Containment Boom
Description:
Solid float rubber oil containment boom is an important equipment used to control the spread and transfer of oil spill in ocean or other waters. Suitable for long-term placement on water surface. It is widely used in long-term distribution of open sea, gulf, port, wharf, river, oil platform and other waters, and can also be used in oil spill emergency operations.

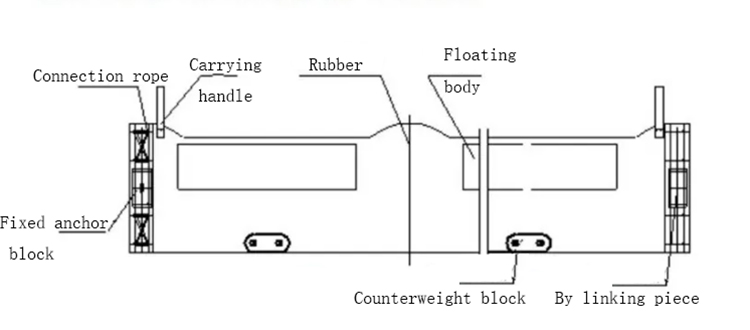

Drawing of Solid Float Rubber Oil Containment Boom:
Technical Data:
Parameter/Model
WGJ600
WGJ800
WGJ1000
WGJ1200
WGJ1400
WGJ1600
WGJ1800
Overall height(mm)
600
800
1000
1200
1400
1600
1800
Freeboard(mm)
210
280
340
400
460
520
590
Draft(mm)
280
360
480
600
700
810
900
Max. working tensile strength(KN)
50
80
100
110
120
140
160
Standard length per section(m)
20
Max. wave height to withstand(m)
1.5
2
2
2.5
3
3
3.5
Max. wind speed to withstand(m/s)
10
15
15
20
20
20
25
Max. current speed to withstand(Kn)
1.5
2
2.5
3
3
3~4
3~4
1. Double layer high strength nylon canvas. Coated with high quality synthetic rubber resistant to oil and aging. Strong resistance to wind and waves, large buoyancy reserve, uniform force column body, long service life.
2. Solid float, high strength, good stability.
3. Tension counterweight chain and counterweight block can be selected by users according to their needs.
4. Optional luminous marking or rubber coating color. Easy to identify.
5. Optional flame retardant rubber booms with flame retardant properties.
Solid Float Rubber Oil Containment Boom in Factory:
Marine Solid Float Rubber Oil Containment Boom:
Suitable Place of Solid Float Rubber Oil Containment Boom:
