Oil Spill Containment Boom
Description:
Oil spill containment boom is an economical and general type of oil boom, especially suitable for the interception and control of oil spill and other floating objects in coastal calm waters. It can be fixed for long-term placement, and has been widely used in inland pollutant discharge inlet, rivers, harbors, lakes and offshore oil drilling platforms.

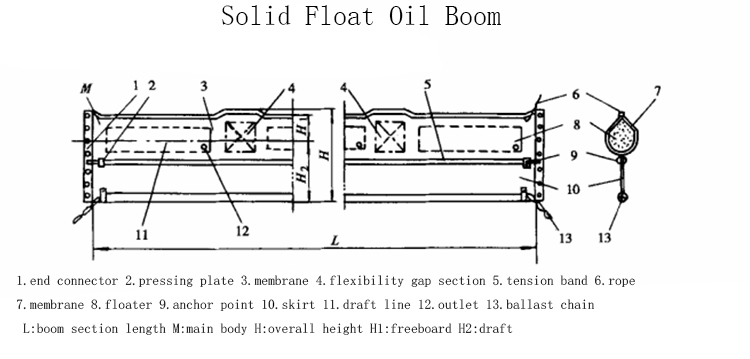

Drawing of Oil Spill Containment Boom:
Technical Data:
|
Parameter/Model |
WGV600 |
WGV700 |
WGV750 |
WGV800 |
WGV900 |
WGV1000 |
WGV1100 |
WGV1500 |
|
Overall height(mm) |
600 |
700 |
750 |
800 |
900 |
1000 |
1100 |
1500 |
|
Freeboard(mm) |
150 |
210 |
260 |
280 |
320 |
340 |
370 |
520 |
|
Draft(mm) |
280 |
390 |
400 |
420 |
490 |
540 |
560 |
760 |
|
Length per section(m) |
20 |
|||||||
|
Max. working tensile strength(K) |
20 |
25 |
30 |
45 |
55 |
75 |
85 |
130 |
|
Max. wave height to withstand(m) |
0.5 |
0.5 |
1 |
1.5 |
1.8 |
2 |
2 |
3 |
|
Max. wind speed to withstand(m/s) |
8 |
10 |
10 |
15 |
15 |
18 |
20 |
20 |
|
Max. current speed to withstand(Kn) |
1 |
1 |
1.5 |
1.5 |
2 |
2.5 |
2.5 |
3 |
|
Packing dimensions for 20m |
1*1*0.6 |
1.2*1*1 |
1.2*1*1 |
1.3*1.1*1.1 |
1.4*1.5*1.2 |
1.4*1.6*1.3 |
1.4*1.7*1.4 |
1.6*1.9*1.8 |
Application of Oil Spill Containment Boom:
