Marine Angle Type Globe Valve
Introduction:
Angle globe valve is an improved globe valve with right angle inlet and outlet. The basic design of this valve is the same as the globe valve, but they have a fundamental difference in the direction of fluid flow. In an angle valve, the fluid is rotated 90°. These valves are used in pipelines with complex piping structures or pressure drops. Depending on the line pressure, angle globe valves can be configured with pressure seals or bolted bonnets.

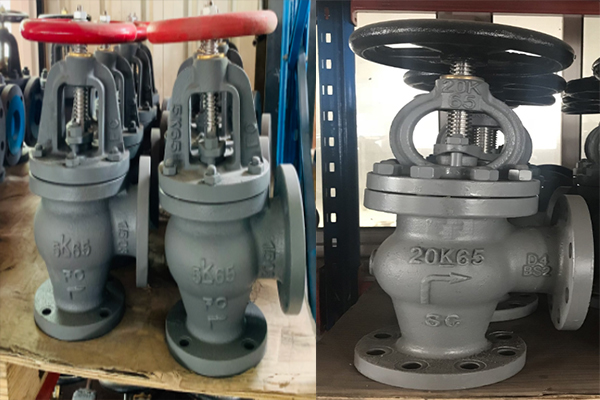

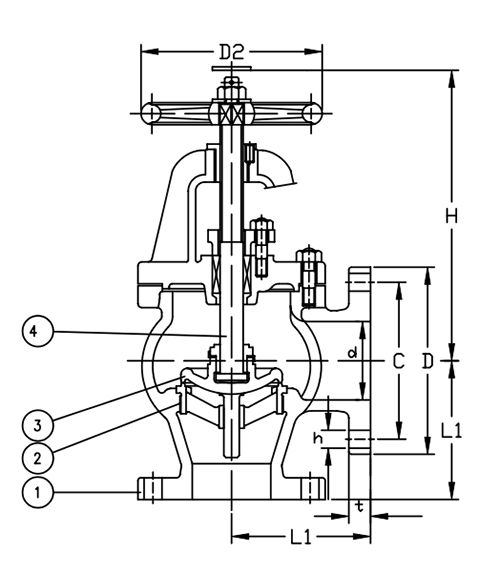

Outline Drawing:
Specifications:
|
Size |
L1 |
D |
C |
NO. |
h |
t |
H |
D2 |
KG |
|
50 |
120 |
155 |
120 |
8 |
19 |
20 |
255 |
160 |
18 |
|
65 |
130 |
175 |
140 |
8 |
19 |
22 |
270 |
200 |
25 |
|
80 |
150 |
200 |
160 |
8 |
23 |
24 |
295 |
224 |
35.7 |
|
100 |
170 |
225 |
185 |
8 |
23 |
26 |
330 |
250 |
49.2 |
|
125 |
200 |
270 |
225 |
8 |
25 |
26 |
390 |
315 |
76.1 |
|
150 |
225 |
305 |
260 |
12 |
25 |
28 |
435 |
355 |
103 |
|
200 |
250 |
350 |
305 |
12 |
25 |
30 |
540 |
450 |
155 |
