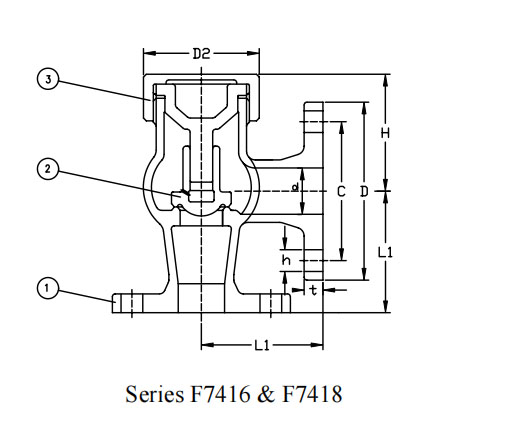

Angle Check Valve
Features
(1). Manufactured according to JIS F7400 standards. The valve material can be chosen by customers.
(2). OEM,ODM service is acceptable.Customer's special requirements will be satisfied in our factory.
(3). We have nearly 10 years experiences on valves exporting.
(4). Sample order & small quantity order is ok.
(5). Any question, will be replied within 24 hours
Configuration Options
Name of Parts
Material
Advantages/Disadvantages
Valve Body
Bronze
Bronze has good casting, friction reduction and mechanical properties
Brass
Brass has low pressure resistance and is easy to rust. The price is lower than bronze.
Valve Bonnet
Bronze
Good castability, wear and corrosion resistance and stable chemical properties
Brass
It has the advantages of high strength, toughness, good antifriction, high corrosion resistance in the atmosphere and sea water, but it has the tendency of corrosion and rupture
Valve Disc
Bronze
Bronze has excellent low temperature resistance, the price is a little more expensive than stainless steel, and the seawater resistance of bronze is better than that of stainless steel
Brass
Good mechanical properties, good plasticity in hot state, good plasticity in cold state, good machinability, easy fiber welding and welding, corrosion resistance, but easy to produce corrosion cracking, and cheap
Gasket
Non-asbestos
It has very good water tightness, air tightness, and fuel tightness, good mechanical properties, oil resistance, temperature resistance, and pressure resistance.
Comparison
Product Picture of other low quality supplier
Product Picture of our factory
Other low quality supplier
Consequence
Our Factory
Result
Manufacturers save costs and purchase unqualified standard bolts
The valve leaves a safety hazard, which is easy to cause an accident
According to customer requirements, use standard bolts.
Use it with confidence, reduce safety hazards and reduce the accident rate.
In order to reduce cost, bronze valve disc is replaced with cast iron valve core,
Cast iron valve disc is easy to corrode and break
Strictly select materials according to user requirements
High safety factor and reasonable structure
Use ordinary round steel stem instead of stainless steel stem
The performance of the substitute material is unstable, the ordinary round steel is processed, the valve stem is thin and there is no heat treatment, which leads to the deterioration of the valve quality.
Made of stainless steel, the diameter of the valve stem meets the design requirements, and it has undergone high temperature quenching and tempering heat treatment.
High safety factor, reasonable structure, long product life
Jerry-built, the wall thickness of the valve body is not processed according to the standard
Uneven thickness, the valve body is easy to be damaged, and the service life is short.
Strictly in accordance with the standard processing, uniform thickness
Use with confidence, meet user needs, and the product has a long service life
In order to reduce costs, omit raw materials and reduce internal quality, resulting in the thin wall of the valve body that occupies the main body of the valve.
Leaving a safety hazard, the thin wall is easy to break or leak the valve at high temperature and high pressure or during operation.
Strictly in accordance with the standard processing, uniform thickness, and material
Use with confidence, meet user needs, and the product has a long service life
Specific Difference Between Us and Other Suppliers
Product Description
|
Product name |
Globe valve |
|
Standard |
JIS |
|
Medium |
Air, gas, oil,etc. |
|
Brand name |
Customer required |
|
Application |
Shipbuilding,ship repair |
|
OEM service |
Available |
|
Certificate |
ABS, BV, CCS, LR, RINA |
|
Model |
7416 7418 |

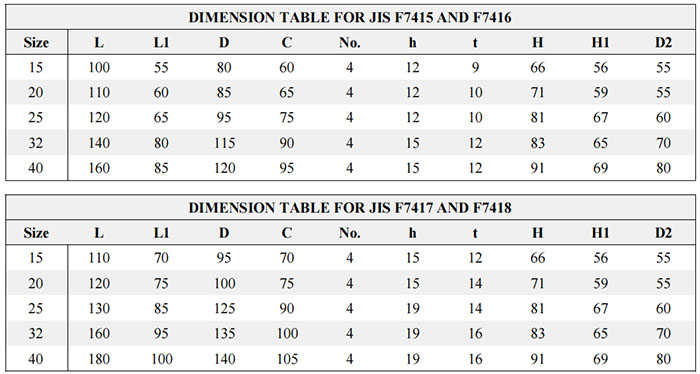

Specifications
IACS Certificate: LR, BV, ABS, CCS, RINA.
