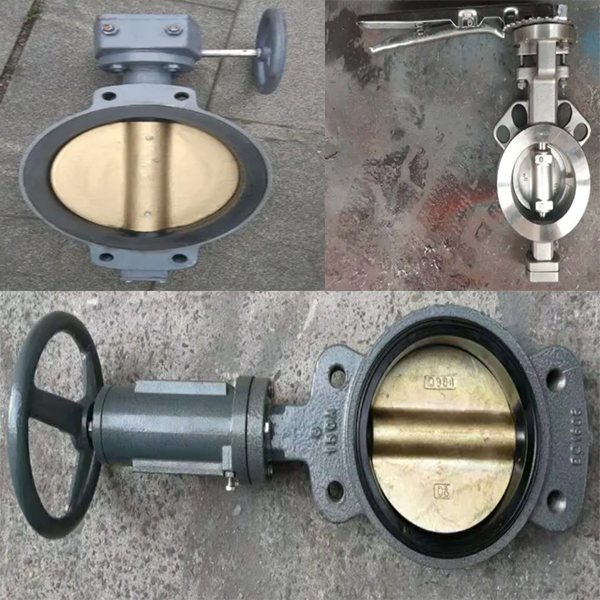

Marine Center Line-Type Butterfly Valve
Introduction:
The product is suitable for sea water, freshe water, air, crude oil and finished oil that temperature is 70 degrees and under.

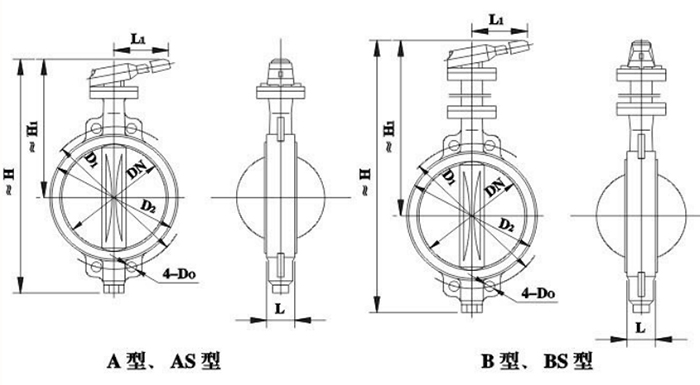

Outline Drawing:
Elementary Dimensions:
A:
|
DN |
Frame Dimension |
Flange |
Weight |
|||||
|
H |
H1 |
L |
L1 |
D1 |
D2 |
D0 |
||
|
80 |
298 |
190 |
46 |
254
|
138 |
118 |
15 |
4.80 |
|
100 |
348 |
205 |
52 |
158 |
138 |
5.74 |
||
|
125 |
378 |
235 |
56 |
183 |
164 |
7.95 |
||
|
150 |
417 |
257 |
340 |
208 |
190 |
11.73 |
||
|
200 |
468 |
282 |
60 |
273 |
250 |
17 |
16.14 |
|
AS:
|
DN |
Frame Dimension |
Flange |
Weight |
|||||
|
H |
H1 |
L |
L1 |
D1 |
D2 |
D0 |
||
|
80 |
298 |
190 |
46 |
254
|
160 |
133 |
18 |
5.20 |
|
100 |
348 |
205 |
52 |
180 |
158 |
6.24 |
||
|
125 |
378 |
235 |
56 |
210 |
184 |
8.95 |
||
|
150 |
417 |
257 |
340 |
240 |
212 |
12.83 |
||
|
200 |
468 |
282 |
60 |
295 |
268 |
22 |
17.59 |
|
|
DN |
Frame Dimension |
Flange |
Weight |
|||||
|
H |
H1 |
L |
L1 |
D1 |
D2 |
D0 |
||
|
80 |
1118 |
1010 |
46
|
254
|
138
|
118 |
15 |
11.52 |
|
1368 |
1260 |
11.64 |
||||||
|
1618 |
1510 |
14.73 |
||||||
|
1868 |
1760 |
16.38 |
||||||
|
100
|
1153 |
1010 |
52 |
158 |
138 |
12.67 |
||
|
1403 |
1260 |
14.45 |
||||||
|
1653 |
1510 |
16.23 |
||||||
|
1903 |
1760 |
18.01 |
||||||
|
DN |
Frame Dimension |
Flange |
Weight |
|||||
|
H |
H1 |
L |
L1 |
D1 |
D2 |
D0 |
||
|
80 |
1118 |
1010 |
46
|
245
|
160 |
133 |
18 |
11.45 |
|
1368 |
1260 |
12.84 |
||||||
|
1618 |
1510 |
14.93 |
||||||
|
1868 |
1760 |
16.58 |
||||||
|
100
|
1153 |
1010 |
52 |
180 |
158 |
12.97 |
||
|
1403 |
1260 |
14.75 |
||||||
|
1653 |
1510 |
16.53 |
||||||
|
1903 |
1760 |
18.31 |
||||||
Certification:
