JIS F7202 Duplex Oil Strainer
1. Application
Its function is to continuously filter the solid impurities in the system at work, maintain the cleanliness of the system medium, reduce the failure rate of the system components, and extend the service life of the system media and equipment.

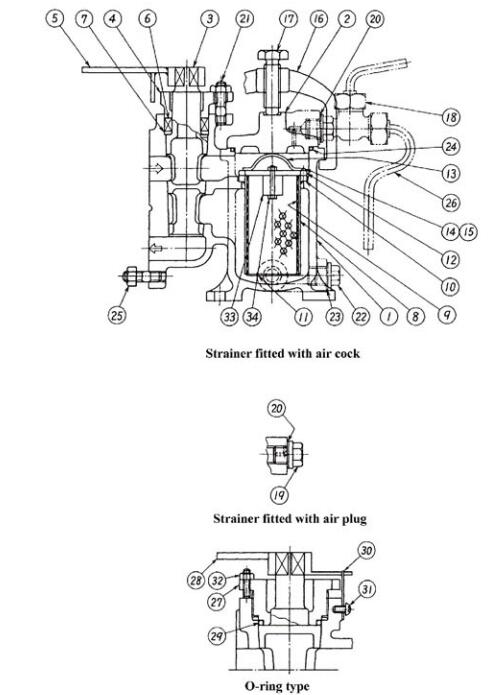

2.Material
(1). - Body: cast iron
(2). - Body cover: cast iron
(3). - Cock plug: bronze
(4)．- Packing gland: cast iron
(5). - Cock handle: carbon steel
(6). - Packing: asbestos
(7). - Washer: rolled steel
(8). - Strainer cylinder: stainless steel
(9). - Wire gauze: stainless steel
(10). - Strainer cylinder ring: rolled steel
(11). - Bottom plate of strainer cylinder: rolled steel
(12). - Wire gauze holder: rolled steel
(13). - Strainer handle and cylinder holder:spring steel
(14). - Cross-recessed pan-head machine screw: rolled steel
(15). - Spring washer: carbon steel
(16). - Cover retainer: carbon steel
(17). - Cover retainer bolt: rolled steel
(18). - Air cock: bronze
(19). - Air plug: rolled steel
(20). - Gasket: asbestos
(21). - Stud and nut: rolled steel
(22). - Plug: rolled steel
(23). - Gasket: asbestos
(24). - O-ring: rolled steel
(25). - Stud and nut: rolled steel
(26). - Air vent pipe: carbon steel
(27). - Packing gland: cast iron
(28). - Cock handle: rolled steel
(29). - O-ring: rolled steel
(30). - Stopper: rolled steel
(31). - Cross-recessed pan-head machine screw
(32). - Bolt and nut: rolled steel
(33). - Magnet: magnetic steel
(34). - Bolt And nut: rolled steel
3. Features
(1). Manufactured according to JIS F7400 standards. The valve material can be chosen by customers.
(2). Excellent quality control is one of our main principles.
4. Size Table
|
Size |
H |
D |
d |
D1 |
|
50 |
526 |
130 |
50 |
160 |
|
65 |
616 |
155 |
65 |
200 |
|
80 |
696 |
180 |
80 |
230 |
|
100 |
784 |
200 |
100 |
270 |
|
125 |
981 |
235 |
125 |
330 |
5. IACS Certificate: CCS, RINA, LR, ABS, BV.
