Marine Sight Glass
Application
A marine sight glass is a device used in ships and other marine vessels to allow the operator to visually inspect the liquid levels inside a tank or container. It consists of a transparent glass or plastic tube mounted vertically on the side of the tank or container. The tube is filled with the liquid being measured, and its level rises and falls with the level of the liquid inside the tank.
The purpose of a marine sight glass is to provide a quick and easy way to visually monitor the fluid levels in a tank or container without the need for additional instrumentation or opening the tank. This is particularly useful in marine applications where accurate fluid level monitoring is critical for safe and efficient operation of the vessel.
Marine sight glasses are commonly used in fuel tanks, water tanks, and other fluid storage containers on ships and boats. They are designed to be durable and resistant to harsh marine environments, and can be made from materials such as brass, stainless steel, or plastic. Some marine sight glasses are also equipped with built-in valves or shut-off devices to control the flow of fluid in and out of the tank.
Feature
1. Marine sight glasses are used to monitor fluid levels in tanks and pipes on marine vessels.
2. They are designed to withstand harsh marine environments, including exposure to saltwater and extreme temperatures.
3. Marine sight glasses are typically made of materials such as borosilicate glass or toughened glass, which are resistant to corrosion and breakage.
4. Some marine sight glasses feature a double-walled design with an air gap to prevent fogging and condensation, ensuring clear visibility at all times.
5. Marine sight glasses are available in a range of sizes and configurations to suit different applications and installation requirements.
Advantage
1. Provides visibility: Marine sight glass allows for easy and clear visibility of the fluid or gas in the system, allowing for easy monitoring and inspection.
2. Prevents contamination: A sight glass allows for easy inspection without having to open the system, preventing contamination from foreign particles.
3. Saves time: The use of a sight glass can help save time during maintenance and troubleshooting, as the operator can easily see if there are any problems in the system.
4. Safety: A sight glass allows for the safe inspection of high-pressure systems, as it eliminates the need to disassemble the system for inspection.
5. Cost-effective: The use of a sight glass can help reduce maintenance costs as it reduces the need for disassembly and cleaning of the system.
Specification
Standard
JIS, CB
Medium
oil, water, steam
Brand name
customer required
Material
Cast iron, cast steel, etc.
OEM Service
available
Application
available in flange version and delivered with double tempered inspection glass.

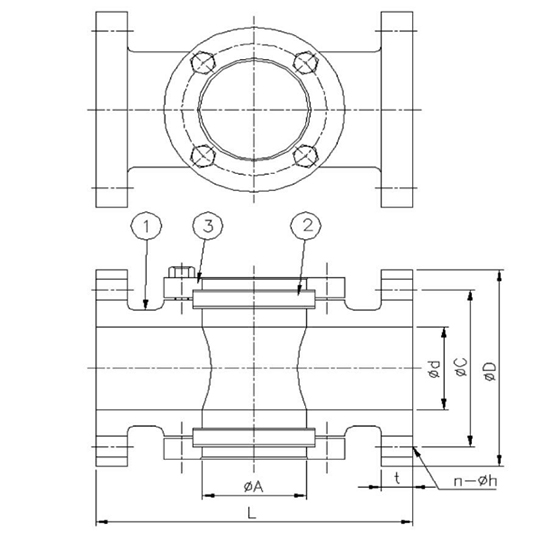

Drawing
Product showing
