Bilge Water Separation Plant
1. Principle of Bilge Water Separation Plant
The device adopts the combination of 1st stage cone plate gravity and coalesce separator; 2nd stage fiber filter, and 3rd stage membrane permeation, in order to make the treated bilge water to reach the requirements of discharge standard of the Resolution of IMO MEPC.107 (49).

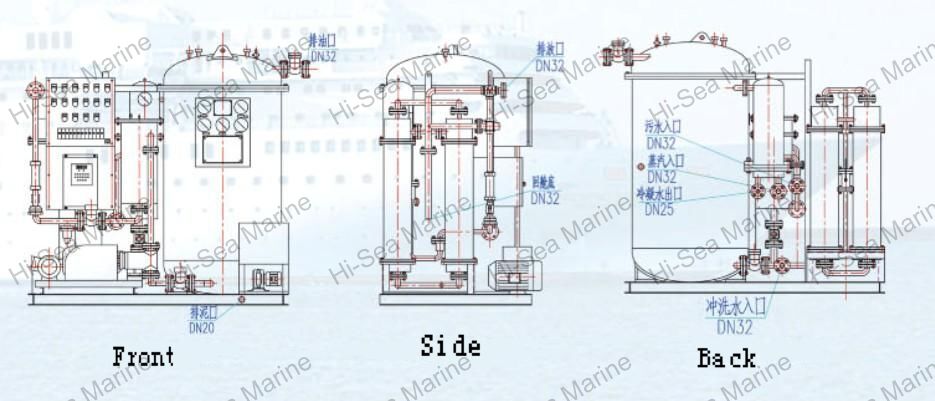

As shown in the enclosed drawing，bilge water comes into the 1st stage separator, inside it is a vacuum negative pressure stage by the suction of the feeding pump, and it effectively prevents the problem that the bilge water is difficult to be separated because of the emulsion caused by feed pump under pressure. The liquid coming out of Feeding pump is adsorbed and filtered by the 2nd stage fiber filter, and then goes into the 3rd stage membrane to reach the discharge standard.
There is a 15ppm bilge alarm in the ship cabin to measure the oil content of effluent. If it finds that the oil content of effluent is in an excess of limit, the oil content meter can make order to switch turn it into the 3rd stage, membrane treatment process.
The oil content meter will give an alarm if finds the oil content of effluent is above limit, and the unqualified water pneumatic three-way valve VS6 is opened automatically, so that the unqualified water is return to bilge, not to the overboard.
2. Bilge Water Separation Plant Technical Specifications
|
Type Technical Specifications |
YWC- |
|||||||||
|
0.25 |
0.50 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 |
||
|
Rated capacity (m3/h) |
0.25 |
0.50 |
1.00 |
1.50 |
2.00 |
2.50 |
3.00 |
4.00 |
5.00 |
|
|
oil content of the discharged water |
≤15ppm |
|||||||||
|
Power of the electric heater（kw） |
1kw |
3kw |
6 |
6 |
6 |
6 |
6 |
12 |
12 |
|
|
Electrical System |
AC 380V/50Hz/3φ, AC 415V/50Hz/3φ, AC 440/60Hz/3φ, AC 480V/60HZ/3φ (optional) |
|||||||||
|
Power of the electric motor |
0.37kw |
0.55kw |
0.75kw |
1.1kw |
1.1kw |
1.5kw |
1.5kw |
2.2kw |
2.2kw |
|
|
Suction head |
≤6m-H2O |
|||||||||
|
Pressure of the discharged water |
5-10m-H2O |
|||||||||
|
Outline Dimension（L×W×H）(mm) |
1000× 600× 1250 |
1100× 690× 1460 |
1050× 1000× 1620 |
1100× 1130× 1650 |
1900× 1120× 1700 |
1900× 1120× 1900 |
1700× 1500× 1900 |
2280× 1700× 1900 |
2590× 2000× 1900 |
|
|
base |
5# |
6# |
6# |
6# |
8# |
8# |
8# |
10# |
10# |
|
|
Weight |
Dry Weight |
400 |
600 |
800 |
1060 |
1260 |
1500 |
1800 |
2100 |
2500 |
|
|
Wet Weight |
550 |
900 |
1200 |
1650 |
2260 |
2800 |
3200 |
3900 |
4600 |
|
Applicable Vessel (KDWT) |
<1 |
1-5 |
5-10 |
10-30 |
30-50 |
50-100 |
100-200 |
100-300 |
>300 |
|
4. Certificates of Bilge Water Separation Plant: CCS, EC, BV, DNV.GL , KR, LR, ABS, RINA approvable.
