CXH-11P Single-deck Navigation Signal Light
Description：
1. Material: PA+GF(lamp body);PC(lamp shade).
2. Illuminant: Incandescent lamp
3. Application: Applied to the length of 50m or above as signal liaison when night or dark navigation, etc.
Standard & authentication:
Standard: The International Regulations for Preventings Collision at Sea,1972 and Grade Entry Norms for Steel Ships, IEC60598-1-2008, GB/T 3028-1995.
Certification: CCS, ZY, CE, GL, etc.

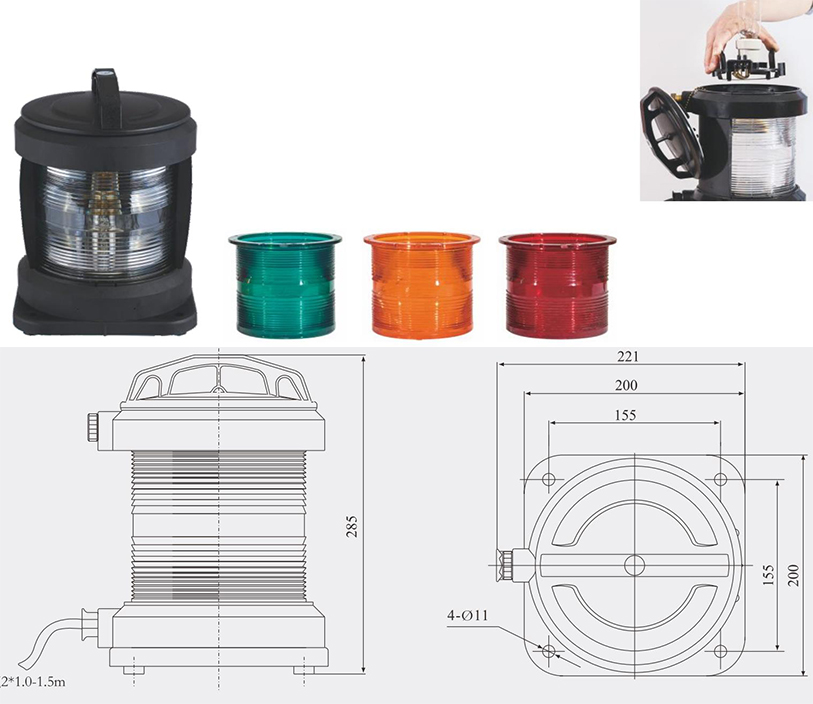

Drawing of marine CXH-11P single-deck navigation signal light:
Specification:
|
Name |
Type |
Visibility |
Level arc |
Weight |
Color |
Power |
Rated voltage |
Vertical arc |
Protection class |
Cable outside Diameter |
Installation method |
|
Starboard light |
CXH1-11P |
3n.m |
112.5° |
3.2KG |
Green |
60W/65W |
24V/110V/220V |
±5° |
IP56 |
Ø8~ Ø10 |
Seat |
|
Port light |
CXH2-11P |
3n.m |
112.5° |
3.2KG |
Red |
||||||
|
Masthead light |
CXH13-11P |
6n.m |
225° |
3.2KG |
White |
||||||
|
Stern light |
CXH4-11P |
3n.m |
135° |
3.2KG |
White/yellow |
||||||
|
All-round light
|
CXH6-11P |
3n.m |
360° |
3.2KG |
Red/green/white |
