100 kN Diesel Engine Single Drum Winch

100 kN Diesel Engine Single Drum Winch

Application

A 100 kN diesel engine single drum winch is a piece of machinery that is used to handle heavy loads, typically in offshore or marine environments. The winch is powered by a diesel engine, which provides the necessary power to operate the winch's drum. 100 kN diesel engine single drum winch is a powerful and reliable piece of equipment that is essential for handling heavy loads in marine and offshore environments. Its diesel engine power source, single drum design, and high force capacity make it an ideal choice for many different applications.

Material

Aluminum, stainless steel and carbon steel.

Advantages and Features

1. Compact structure, high strength;

2. Remote control or local control;

3. Low noise, high security;

4. Working steadily and smoothly;

5. Easy for installation, lubrication and maintenance;

6. Corrosion resistance, long lifespan;

7. open gearbox;

8. Manual brake and clutch;

9. Can be customized according to your requirements;

10. Certificate: LR, RINA, BV...

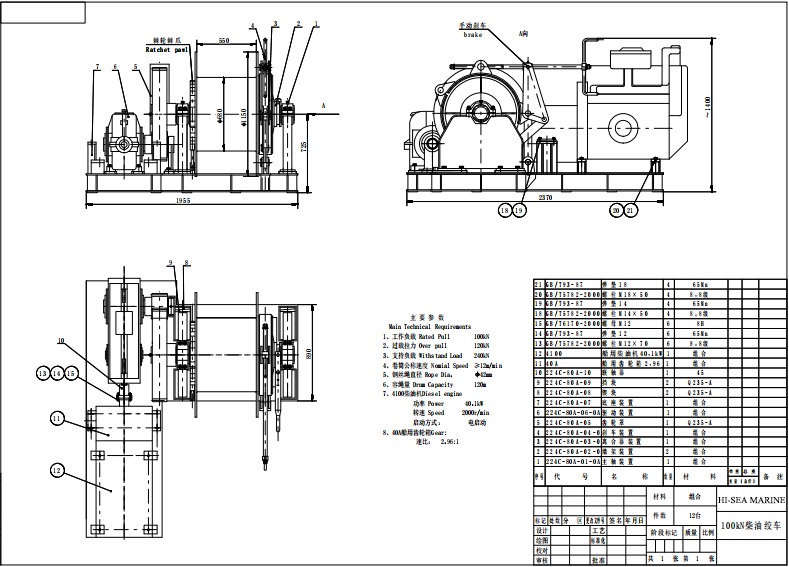

Drawing of 100 kN Diesel Engine Single Drum Winch

Main Specification

1. 4100 Diesel engine

Power: 40.1kW

Speed: 2000r/min

2. Gear: 40A

Speed ratio: 2.96:1

Rated pull	Over pull	Support load	Nominal speed	Rope diameter	Capacity
KN	KN	KN	≥m/min	mm	m
100	120	240	12	42	120

Finished Image of 100 kN Diesel Engine Single Drum Winch
