1W(Z) Marine Domestic Water Pump

1W(Z) Marine Domestic Water Pump

Overview

1W(Z) Series marine self-priming vortex pumps are applicable for pumping potable water, washings and sanitary fresh water and sea water, as well as life pump and cooling pump（T＜85℃).

Model Explanation 1W(Z) -3

1— Inlet and outlet diameters 1 inch

W(Z)—Marine vortex pump (Self-priming)

3—Integral number of specific speed divided by10

Structural Specifications

Performance Parameter

	50HZ/2900RPM			60HZ/3500RPM			50HZ/60HZ
Type	Capacity (m3/h)	Head (m)	Motor power (kW)	Capacity (m3/h)	Head (m)	Motor power (kW)	Weight (kg)	Hs (m)
1W(Z)-3	6	40	1.5	7.2	57.6	2.2	28	4
1W-3	6	40	1.5	7.2	57.6	2.2	26	4
1W(Z)-0.9	3.6	102	3/4	4.32	146	5.5/7.5	26.5	4
1W-0.9	3.6	102	3/4	4.32	146	5.5/7.5	25.5	4
	50HZ/1450RPM			60HZ/1800RPM			50HZ/60HZ
Type	Capacity (m3/h)	Head (m)	Motor power (kW)	Capacity (m3/h)	Head (m)	Motor power (kW)	Weight (kg)	Hs (m)
1W(Z)-3	3	10	0.75	3.6	14.4	1.1	28	4
1W-3	3	10	0.75	3.6	14.4	1.1	26	4
1W(Z)-0.9	1.8	25.5	1.1/1.5	2.2	36.7	1.5/2.2	26.5	4
1W-0.9	1.8	25.5	1.1/1.5	2.2	36.7	1.5/2.2	25.5	4

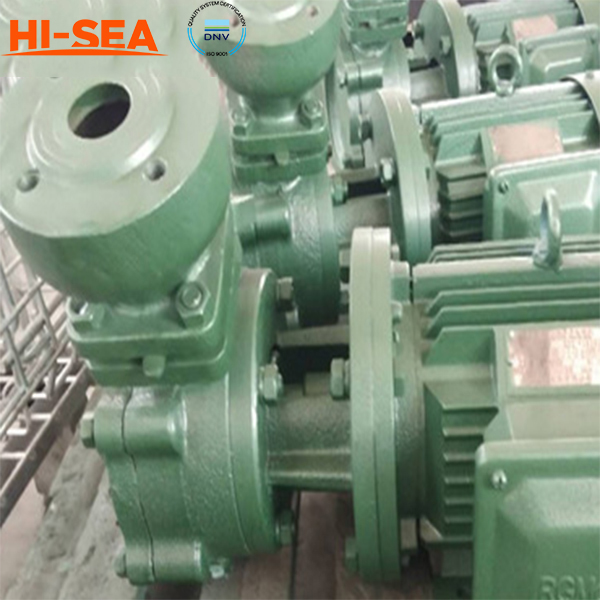

The Picture of 1W(Z) Marine Domestic Water Pump
