48mm Hydraulic Single Gypsy Windlass

48mm Hydraulic Single Gypsy Windlass

Application

48mm Hydraulic Single Gypsy Windlass is one of the most important deck machinery. It is driven by hydraulic motor and used for engaging and lowering the anchors with chain. It is equipped with single warping head. The closed gearbox makes 48mm Hydraulic Single Gypsy Windlass safer to run. It is equipped with manual brake and clutch.

Material

Cast steel, 316L stainless steel.

Advantages and Features

1. Contract structure, high strength;

2. Local control and remote control;

3. Easy installation, low maintenance;

4. Corrosion resistance, long lifespan;

5. Excellent operation, exquisite appearance;

6. Low power consumption, high efficiency;

7. Reliable service, high security;

8. Can be customized according to your requirements;

9. Certificate: IRS, BV, LR...

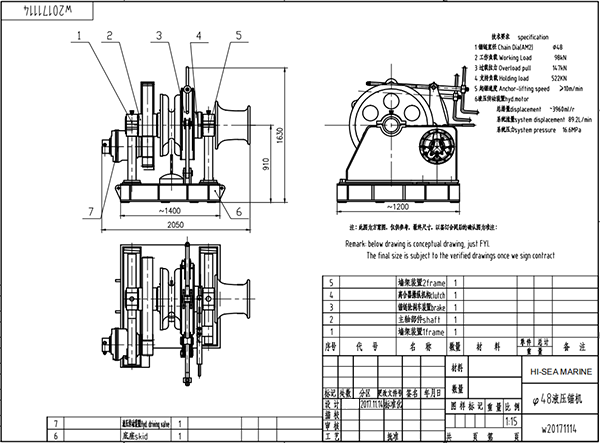

Drawing of 48mm Hydraulic Anchor Windlass

Technical Parameter

Main Technical Data Of Windlass
Chain Dia.	Working Load	Overload pull	Supporting Load	Working Speed	Warping Load	Displacement
mm	KN	KN	KN	m/min	KN	ml/r
48	98	147	522	≥10	15	3960
The above technical parameters are not fixed,they can be designed specially in according with customers' requirements

Finished Image of 48mm Hydraulic Single Gypsy Windlass
