CBL-42 Marine Fan

CBL-42 Marine Fan

1. Characteristics:

Explosion-proof ,safe and reliable in operation

Small in size ,light in weight, and low in noise

Well anti-corrosive

Strongly capable of resisting vacillation, vibration and shocking.

2. Operation Conditions:

For places where there are explosive gas mixtures of grade ⅡB and group T4.

Ambient temperatures:-25℃～+50℃

Relative humidity of the air:≤95%

Cyclical vacillation:22.5°～45°(Vacillation cycle5~10s)

Sustained horizontal tilting:15°

Sustained vertical tilting:10°

Vibration :existent

Shock :existent

3. Main Property Parameters and Dimensions:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor
					Freq Hz	Power Kw		Type
						Type I	Type II	Type I	Type II
CBL-42	6000	590	490	970	50	2.2	3	YB112M-6H	YB132S-6H Y132S-6H
	7200	540	390
	7200	840	705	1160	60	3		YB132S-6H
	8600	775	560
	9000	1305	1080	1460	50	7.5	7.5	YB132M-4H	YB132M-4H Y132M-4H
	12000	1285	880
	10800	1870	1550	1750	60	11	11	YB160M-4H	YB160M-4H Y160M-4H
	14000	1840	1265

Type

Type of the motor

A

A1

A2

A3

B

B1

B2

B3

D1

D2

D3

n₁*d₁

n₂*d₂

H

h

h₁

h₂

Type I

Type II

CBL-42

YB112M-6H

YB132S-6H Y132S-6H

320

396

365

270

400

475

440

340

Ø505

Ø470

Ø430

12*Ø12

12*Ø12

844

112

340.5

266

YB132S-6H

132

YB132M-4H

YB132M-4H Y132M-4H

130

YB160M-4H

YB160M-4H Y160M-4H

160

M	M1	L	L1	L2	L3	L4	K		H1	H2	H3	Ø1	Ø2	Ø3	I1	I2	I3	I4	I5	I6	Weight ≈㎏
							Type I	Type II													Type I	Type II
735.5	331	774	210	234	140	190	Ø12	Ø12	933.5	430	132	Ø15	Ø240	Ø265	400	421	688	906	216	140	123	179
		804		253	140	216	Ø12	Ø12		430	132	Ø15	Ø240	Ø265	400	421	688	906	216	140	146
		844		253	178	216	Ø12	Ø12		430	132	Ø15	Ø240	Ø265	400	421	688	906	216	178	165	198
		919		272	210	254	Ø15	Ø15	1013.5	510	160	Ø19	Ø260	Ø300	450	421	722	1006	254	210	218	263

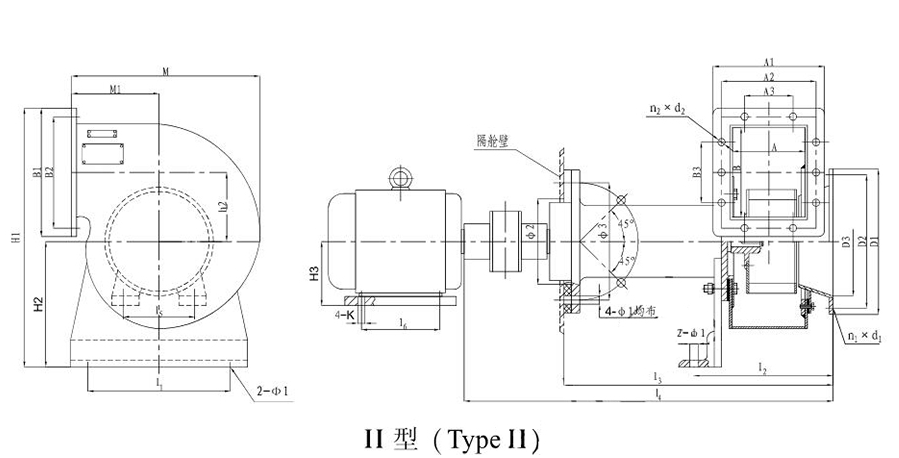

4. Outline Drawing:

5. Product Showing:
