CYZ-A Marine Drainage Pump

CYZ-A Marine Drainage Pump

Overview:

CYZ-A Series self-priming centrifugal pump, suitable for conveying medium temperature -20℃～80℃. Viscosity ≤100centipoise, solid content of up to 30% following the liquid. Widely used to transport gasoline, kerosene, diesel, kerosene, seawater, fresh water, drainage water. As to the corrosion resistant mechanical seal and a stainless steel parts material Capacity, can then be used for shipbuilding, chemical, pharmaceutical, printing and dyeing, electroplating, brewing, paper, mining, and power. For the tanker or water ships, can be used as a stripper pump. It is self-priming centrifugal pump, it has the advantages of simple structure, convenient operation, stable operation, and easy maintenance, high efficiency, long life, has a strong self-priming Capacity. Pipeline without bottom valve, pump body before work just to ensure there is a certain amount of fluid can be cited. For the tanker or water ships, can be used as a stripper pump, stripping good effect.

Model Explanation  80CYZ-A-32P(B)

80—Inlet diameter 80mm

CYZ—Marine self-priming horizontal centrifugal oil pump

A—Improvement model

32—Head 32m

P—Stainless steel (cast iron if not)

B—Explosion-proof motor (standard if not)

Perfomance Parameter:

CYZ-A	50HZ/2900RPM				60HZ/3500RPM			50HZ/60HZ
Type	Capacity (m3/h)	Head (m)	Motor Power (kW)	Weight (kg)	Capacity (m3/h)	Head (m)	Motor Power (kW)	Suction (m)	Self-priming performance (min/5m)	Inlet/out dia. (mm)
25CYZ-A-20	3.2	20	0.75	72	3.8	28.8	1.1	6.5	1.9	25
25CYZ-A-32	3.2	32	1.1	80	3.8	46.1	1.5	6.5	1.8	25
40CYZ-A-20	6.3	20	1.1	85	7.6	28.8	1.5	6.5	1.9	40/32
40CYZ-A-40	10	40	4	138	12	57.6	5.5	6.5	1.5	40
50CYZ-A-12	15	12	1.5	90	18	17.3	2.2	6.5	2.4	50
50CYZ-A-20	18	20	2.2	98	21.6	28.8	3	6.5	1.9	50
50CYZ-A-30	20	30	4	140	24	43.2	5.5	6.5	1.5	50
CYZ-A	50HZ/2900RPM				60HZ/3500RPM			50HZ/60HZ
Type	Capacity (m3/h)	Head (m)	Motor Power (kW)	Weight (kg)	Capacity (m3/h)	Head (m)	Motor Power (kW)	Suction (m)	Self-priming performance (min/5m)	Inlet/out dia. (mm)
50CYZ-A-35	14	35	4	145	16.8	50.4	5.5	6.5	1.5	50
50CYZ-A-40	10	40	4	145	12	57.6	5.5	6.5	1.5	50
50CYZ-A-50	12.5	50	5.5	160	15	72	11	6.5	1.4	50
50CYZ-A-60	15	60	7.5	190	18	86.4	15	6.5	1.3	50
50CYZ-A-75	20	75	11	240	24	86.4	18.5	6.5	1.3	50
65CYZ-A-15	30	15	3	100	36	21.6	3	6.5	2	65
65CYZ-A-32	25	32	5.5	165	30	46.1	7.5	6	1.5	65
80CYZ-A-13	35	13	3	107	42	18.7	4	6	3.4	80
80CYZ-A-17	43	17	4	156	51.6	24.5	5.5	6	1.8	80
80CYZ-A-22	40	22	5.5	169	48	31.7	7.5	6	1.9	80
80CYZ-A-25	50	25	7.5	177	60	36	15	6	1.5	80
80CYZ-A-32	50	32	7.5	180	60	46.1	15	6	1.5	80
80CYZ-A-55	60	55	18.5	310	72	79.2	30	6	1.5	80
80CYZ-A-70	60	70	22	333	72	100.8	37	6	1.2	80
100CYZ-A-20	100	20	11	258	120	57.6	18.5	6	1.5	100
100CYZ-A-40	100	40	22	455	120	28.8	37	6	1.8	100
100CYZ-A-65	100	65	30	620	120	93.6	45	6	1.8	100
100CYZ-A-75	70	75	30	639	84	108	45	6	1.8	100
150CYZ-A-55	170	55	45	830	204	79.2	75	5	1.8	150
150CYZ-A-65	170	65	55	957	204	93.6	90	5	1.3	150
150CYZ-A-80	160	80	55	986	192	115.2	90	5	1.2	150
CYZ-A	50HZ/1450RPM				60HZ/1800RPM			50HZ/60HZ
Type	Capacity (m3/h)	Head (m)	Motor Power (kW)	Weight (kg)	Capacity (m3/h)	Head (m)	Motor Power (kW)	Suction (m)	Self-priming performance (min/5m)	Inlet/out dia. (mm)
100CYZ-A-40A	100	40	22	520	120	57.6	37	6	1.8	100
150CYZ-A-65A	170	65	55	1138	204	93.6	90	5	1.2	150
200CYZ-A-32	400	32	55	1205	480	46.1	90	5	2	200
200CYZ-A-63	280	63	90	1338	336	90.7	132	5	1.5	200
200CYZ-A-65	350	65	110	1553	420	93.6	160	5	1.5	200
250CYZ-A-32	550	32	75	1307	660	46.1	110	5	2	250
250CYZ-A-50	400	50	90	1486	480	72	132	5	2	250
250CYZ-A-55	450	55	110	1681	540	79.2	160	5	2	250
250CYZ-A-75	400	75	132	1829	480	108	200	5	1.5	250
300CYZ-A-32	600	32	90	1608	720	46.1	132	5	2	300
300CYZ-A-50	500	50	110	1728	600	72	160	5	2	300
300CYZ-A-55	550	55	132	1995	660	79.2	200	5	2	300

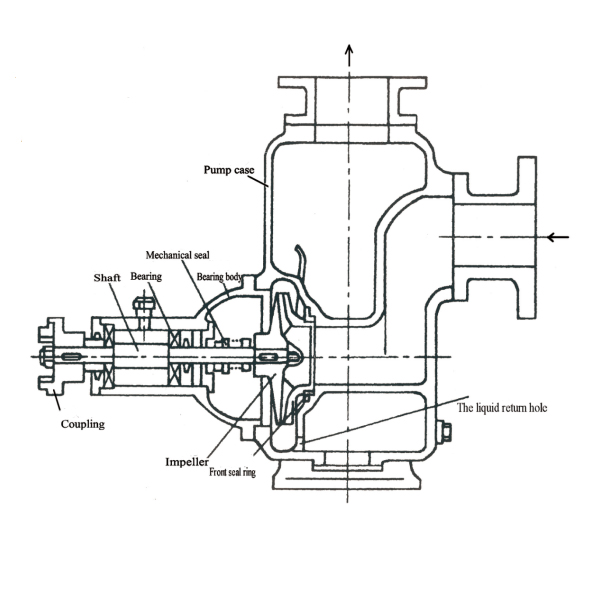

Drawing:
