Dredge Self-Floating Rubber Hose

Dredge Self-Floating Rubber Hose

Application

The dredge self-floating rubber hose is an essential component of any dredging operation, providing a reliable and efficient means of transporting dredged materials from one location to another. It is available in various diameters and lengths, depending on the specific needs of the dredging project. The hose is designed to float on the water surface and is made of high-quality rubber materials to withstand the abrasive nature of the materials being transported.
The self-floating capability of the hose is achieved through the use of closed-cell foam flotation devices that are integrated into the hose's structure. These flotation devices are placed at intervals along the length of the hose and ensure that it remains afloat and above the water surface, even when fully submerged.

For more dredge self-floating rubber hose specifications, please click here.

Features

1. Outer cover with excellent abrasion resistance and UV protection.
2. Inner layer  with excellent abrasion resistance and high quality.
3. Single foam flotation casing  to prevent water absorption.
4. Wearing colored indicator layer.
5. Area above water not less than 20% of total volume.
6. Bending angle: in working condition, the bending angle is from 0° to 45°.
7. Low center of gravity,strong anti-wave ability, good stability.
8. Easy installation, good adhesion, long service life.
9. The product can be customized according to clients' requirements.

Structure and Material
1. Inner rubber layer: NR, SBR or BR.
2. Reinforcement layer: tire cord with helix wire and floating material layer.
3. Floating layer: PE.
4. External rubber layer:SBR and CR blend.
5. Safety factor: 1:3.

Drawing of Dredge Self-Floating Rubber Hose

Technical Parameters

DN (mm)	Flange OD (mm)	Flange thickness (mm)	Bolt hole			Length (mm)	Inner rubber thickness (mm)
			P.C.D. (mm)	No.	Hole dia. (mm)
200	340±3	25±2	295±1	8	22±1	5800/11800	12
250	400±3	25±2	350±1	12	22±1	5800/11800	12
300	445±3	25±2	395±1	12	22±1	5800/11800	15
350	445±3	25±2	460±1	16	22±1	5800/11800	15
400	560±3	25±2	500±1	16	22±1	5800/11800	20
450	600±3	25±2	500±1	16	22±1	5800/11800	20
500	660±3	35±2	560±1	18	22±1	5800/11800	20
550	700±3	35±2	645±1	20	22±1	5800/11800	20
600	780±3	35±2	725±1	20	26±1	5800/11800	20
650	830±3	35±2	760±1	20	27±1	5800/11800	30
700	890±3	40±2	890±1	24	30±1	5800/11800	35
750	985±3	40±2	914±1	28	35±1	5800/11800	35
800	1060±3	45±2	985±1	24	39±1	5800/11800	40
850	1120±3	45±2	1020±1	24	33±1	5800/11800	40
900	1295±3	50±2	1210±1	28	45±1	5800/11800	40
1000	1430±3	50±2	1330±1	28	45±1	5800/11800	45
1100	1550±3	65±2	1410±1	36	45±1	5800/11800	45

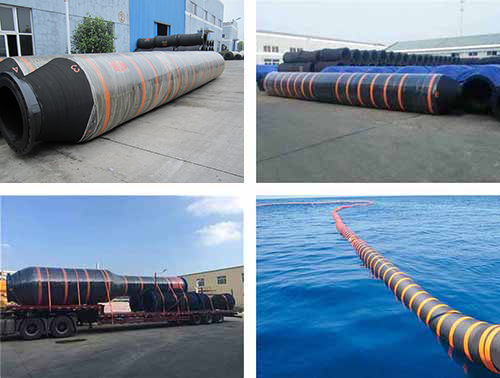

Image of Dredge Self-Floating Rubber Hose
