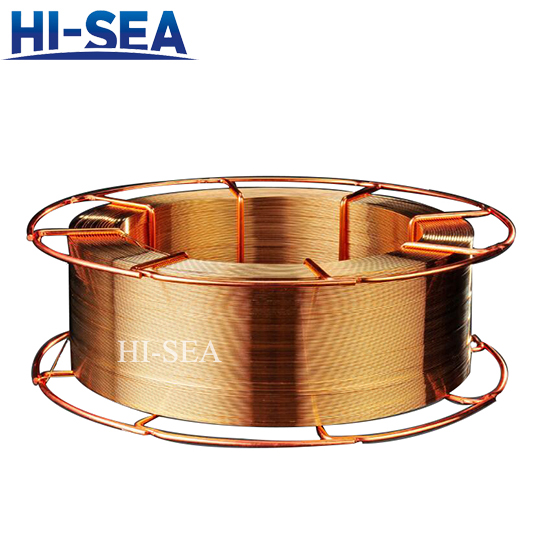

ERCuSi-A Welding Wire

ERCuSi-A Welding Wire

1. Physical And Mechanical Properties

(1). Solidus: 910℃

(2). Liquidus: 1025℃

(3). Denseness: 8.5kg/dm³

(4). Elongation: 40%

(5). Brinell hardness: 80~90HB

(6). Tensile Strength: 330~370N/mm²

2. Application

Our products are suitable for butt welding and surfacing welding of brass, especially for MIG welding of galvanized steel plate.

3. Attention

This product should be preheated when it is used for MIG surfacing of large welded parts. Pulsed argon arc welding is recommended for surfacing of steel. If you have any questions about the product, please contact us as soon as possible.

4.Chemical Ingredient

Executive Standard	Classified Code	Alloy No.	Cu	Al	Fe	Mn	Ni	P	Pb	Si	Sn	Zn	Total Other Elements
ISO24373	Cu6560	CuSi3Mn1	bal.	0.02	0.5	0.5-1.5	-	0.05	0.02	2.8-4.0	0.2	0.4	0.5
GB/T9460	SCu6560	CuSi3Mn	bal.	max 0.01	max 0.5	max 1.5	-	-	max 0.02	2.8-4.0	max 1.0	max 1.0	max 0.5
BS EN14640	Cu6560	CuSi3Mn1	bal.	0.01	0.5	0.5-1.5	-	0.02	0.02	2.8-4.0	0.2	0.2	0.4
AWS A5.7	C65600	ERCuSi-A	bal.	0.01	0.5	1.5	-	-	0.02	2.8-4.0	1.0	1.0	0.5
DIN 1733	2.1461	SG-CuSi3	bal.	max 0.01	max 0.3	0.5-1.5	-	max 0.02	max 0.02	2.8-4.0	max 0.2	max 0.2	max 0.4
