European Type Large Shackle

European Type Large Shackle

Description:

European type large shackle is mainly used in dock, electric power, machinery, metallurgy, railway, water conservancy, port, mining, construction, paper making, chemical industry, etc. This large shackle has bow type and dee type. It has large rated load than common shackle. Carbon steel and alloy steel can be chosen to make it.

Product Superiority:

1. Large rated load

2. Safe and reliable

Product Detail (please refer to “Drawing of European Type Large Shackle”):

Specification of bow shackle:

WLL(kg)	Dimension(mm)					Weight 100pcs(lbs)
	D	a	c	r	b
80	5	10	19	8	11	5
100	6	13	25	10	14	9
200	8	16	32	12	18	18
320	10	19	38	16	20	33
520	12	25	51	19	26	67
800	16	32	64	28	33	127
1100	20	38	76	33	40	203
1500	22	44	89	37	50	330
2100	25	51	100	40	57	508
3000	28	57	115	47	68	787
3500	32	64	127	52	73	1091
5000	38	76	152	63	85	1776
7000	45	90	180	75	96	3172
8000	50	102	200	78	108	4441

Specification of dee shackle:

WLL(kg)	Dimension(mm)					Weight 100pcs(lbs)
	D	d	a	c	b
80	5	5	10	19	11	4
100	6	6	13	25	14	8
200	8	8	16	32	18	15
320	10	10	19	38	20	29
520	12	12	25	51	26	57
800	16	16	32	64	33	110
1100	20	20	38	76	40	117
1500	22	22	44	89	50	287
2100	25	25	51	100	57	441
3000	28	28	57	115	68	684
3500	32	32	64	127	73	949
5000	38	38	76	152	85	1545
7000	45	45	90	180	96	2758
8000	50	50	102	200	108	3861

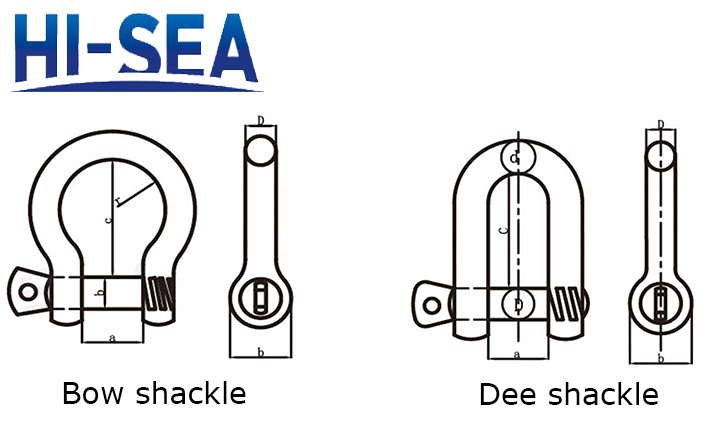

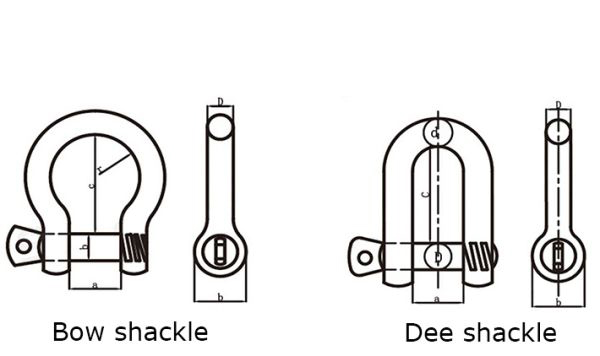

Drawing of European Type Large Shackle:

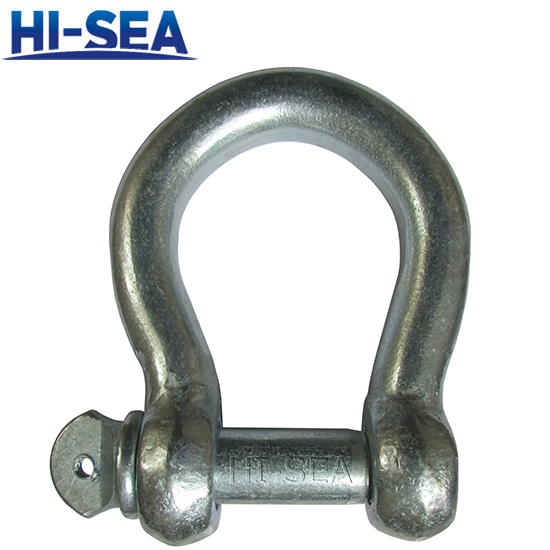

Picture of Bow Shackle:

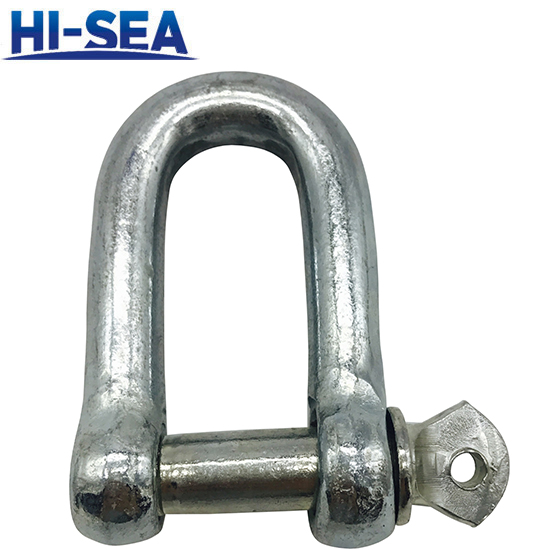

Picture of Dee Shackle:
