Fiberglass Reinforced Plastic Grating

Fiberglass Reinforced Plastic Grating

Description:

Fiberglass Reinforced Plastic Grating, which is made of unsaturated polyester resin as the matrix and alkali free glass fiber as the reinforcement material by special process.Fiberglass Reinforced Plastic Grating can be used as structural materials for floors, platforms, ship decks, building trestles and corrosive environments. With light weight, high strength, corrosion, flame retardant, non-magnetic insulated, colorful, there are a number of alternative style form. It can be used in acid and alkali corrosion, damp and hot where  is easy to rust area, such as power generation, electroplating, Marine operation, sewage treatment, chemical industry, electroplating equipment, glass fiber reinforced plastic products such as gutter cover plate, overflow tank and so on.

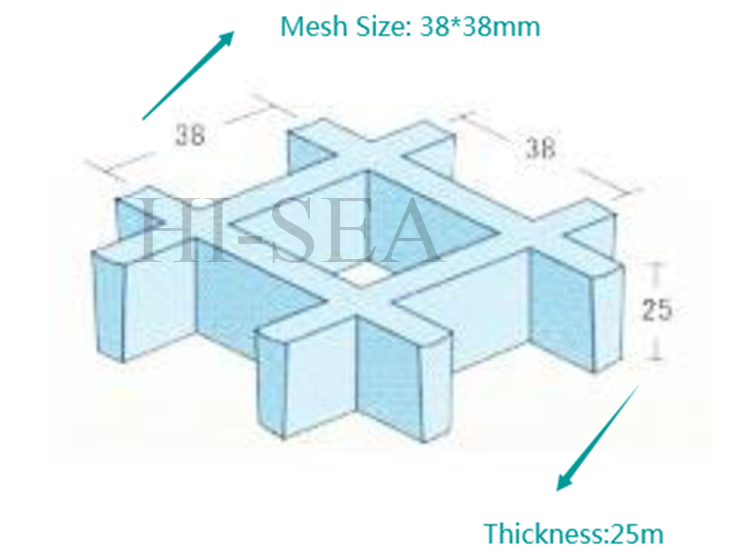

Drawing and Dimensions for Reference:

Item	Thickness	Open Rate	Mesh Size	Panel Size	Weight	Top Surface
TOP-3825	25mm	70%	38x38mm	1.22x3.66m	12.6KGS/M2	Smooth or gritted or covered
TOP-10025	25mm	68%	25x100mm	1.22x3.66m	12.6KGS/M2
TOP-3830	30mm	68%	38x38mm	1.22x3.66m	15.9KGS/M2
TOP-3838	38mm	68%	38x38mm	1.525x4m	19.5KGS/M2
TOP-10038	38mm	46%	25x100mm	1.22x3.745m	21.7KGS/M2
TOP-4040	40mm	66%	40x40mm	1.527x4.047m	21.43KGS/M2
TOP-5050	50mm	71%	50x50mm	1.525x4m	23.43KGS/M2
TOP-2550	50mm	40%	25x50mm	1.22x1.83m	47KGS/M2

Overview：

Technique: Molding

Feature: Anti-corrosive, moisture-proof

Size: Customized

Color: Yellow, green, gray, red, blue, black and natural(as your request)

Certificate: ISO9001

Raw Materials: Fiberglass, resin, other auxiliary materials

Applications: Floor, platform, ship deck, building trestle, corrosive environment

Different Surface Types:

Multiple Colors:

Application of Fiberglass Reinforced Plastic Grating
