Fluorescent Ceiling Light

Fluorescent Ceiling Light

The Scope of Application:

Fluorescent lights are ideal for dry cabin of ships, such as the residence, retiring room, dining room, cab, operator of the sailors and passengers.

Products Characteristic:

Fluorescent has the feature of long service life, high light efficiency and good color rendering.The light equipped compensating capacitance inside the lamp holder also has the good effect of start. The spin-style of lamp holder has fine contact function. The installation way of the light is recessed-type, compact structure and delicacy appearance.

Approved by the CCS

Specification:

Type	Power	Voltage	Power Factor	Lamp Holder	Protection Class	Weight
JPY24-1	1×20W	110V/60Hz 220v/50Hz 220V/60Hz	＞0.85	G13	IP34	5.2kg
JPy24-2	2×20W		＞0.85			5.2kg

Type	Power	Voltage	Power Factor	Lamp Holder	Protection Class	Weight
JPY25-2	2×20W	110V/60Hz 220V/50Hz 220V/60Hz	＞0.85	G13	IP22	7.0kg
JPY45-2	2×40W		＞0.85			11.0kg

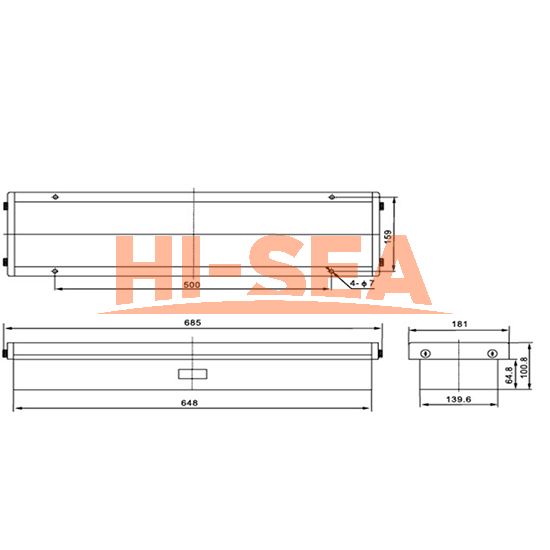

Drawing of Fluorescent Ceiling Light JPY24-1:

Fluorescent Ceiling Light:
