High Pressure Rubber Hose

High Pressure Rubber Hose

1. Description

    High pressure rubber hose is suitable for delivering water and petroleum-based hydraulic fluids in the working temperature of -40 °C to +100 °C. And it can work intermittently in the temperature of 120 °C. It is mainly used for outside applications such as coast, forest, factories and the similar areas where excellent abrasion resistance is needed.

    It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality synthetic rubber blend, making the hose resistant to abrasion, corrosion and oil. The reinforcement is made from two layers of high tensile steel wires, making the hose work very well in the high pressure conditions. The cover is made from abrasion, weather, cut, aging and sunlight resistant synthetic rubber.

2. Characteristics

(1) The high pressure steel wire braid rubber tube is made of special synthetic rubber and has excellent oil, heat and aging resistance.
(2) High pressure and excellent impulse performance.
(3) The pipe body is tightly bound and soft to be used, with small deformation under pressure.
(4) The hose has excellent flexibility and fatigue resistance.
(5) The length of woven and wrapped hose is large, which can reach up to 10 meters or even more than 100 meters.

3. Technical Parameters

    The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!

Hose code	OD			Working pressure		Proof pressure		Min burst pressure		Min bending radius	Weight
	A		AT
	min	max	max	MPa	Psi	MPa	Psi	MPa	Psi	mm	kg/m
EN8532-01	15.1	16.7	14.1	41.5	6020	83	12035	165	23925	90	0.32
EN8532-02	16.7	18.3	15.7	40	5800	80	11600	160	23200	100	0.36
EN8532-03	18.3	19.9	17.3	35	5075	70	10150	140	20300	115	0.45
EN8532-04	20.6	22.2	19.7	33	4785	66	9570	132	19140	130	0.54
EN8532-05	23.8	25.4	23.0	27.5	3990	55	7975	110	15950	180	0.68
EN8532-06	27.0	28.6	26.2	25	3625	50	7250	100	14500	200	0.80
EN8532-07	31.0	32.6	30.1	21.5	3120	43	6235	85	12325	240	0.94
EN8532-08	38.5	40.9	38.9	16.5	2390	32.5	4710	65	9425	300	1.35
EN8532-09	49.2	52.4	49.5	12.5	1810	25	3625	50	7250	420	2.15
EN8532-10	55.6	58.8	55.9	9	1305	18	2310	36	5220	500	2.65
EN8532-11	68.2	71.4	68.6	8	1160	16	2320	32	4640	630	3.42

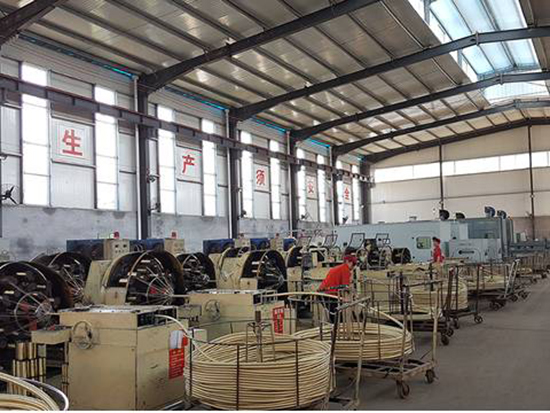

 4. Workshop
