Hydraulic Single Gypsy Windlass


Hydraulic Single Gypsy Windlass

Hydraulic Single Gypsy Windlass



Application

Hydraulic single gypsy anchor windlasses can be designed for use on various types and sizes of vessels, and are commonly found on larger commercial and military ships, as well as some pleasure craft. They are typically installed on the bow of the vessel and are operated by crew members using a control panel or remote control system. The windlass is also equipped with safety features such as an emergency stop button and overload protection to prevent damage to the equipment and ensure the safety of crew members.


Advantages and Features

1. Contract structure, high strength;

2. Local control and remote control;

3. Easy installation, low maintenance;

4. Corrosion resistance, long lifespan;

5. Excellent operation, exquisite appearance;

6. Low power consumption, high efficiency;

7. Reliable service, high security;

8. Can be customized accorfing to your requirements.

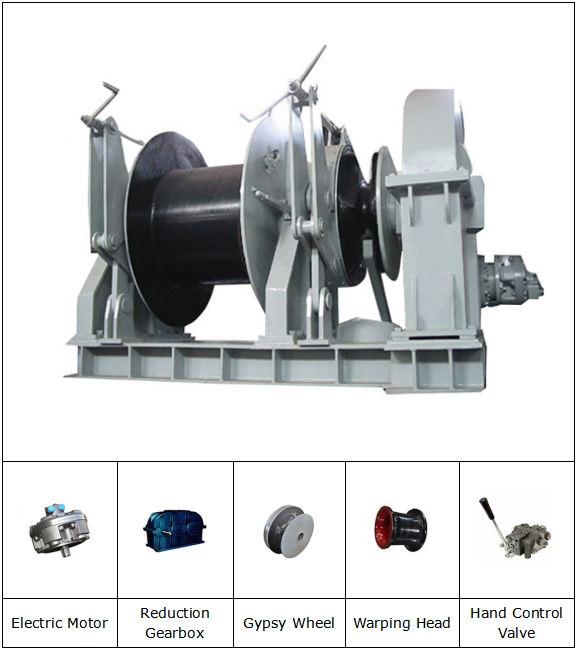

Hydraulic Single Gypsy Windlass Structure


We not only provide customers with high-quality products, but also provide complete system solutions and added services for specific customers. Therefore, There are  high competitiveness.

Configuration options

Part Name

Type/Material

Advantages/Disadvantages

Gypsy Wheel

Q345D

It has good comprehensive mechanical properties, good weldability, cold and hot workability and corrosion resistance, and has good low temperature toughness (high strength, good welding performance).

Drum

Q235-A

It has good toughness and plasticity, has a certain elongation, and has good weld-ability and hot work-ability. Q235A is generally used in the hot-rolled state. CCS no longer needed Q235A.

Q235-B

Has a certain elongation, strength, good toughness and cast-ability, easy to stamp and welding. Suitable for products with small loads.

Q345-B

Good comprehensive performance, good low temperature performance, good cold stamping performance, good welding performance and machinability. (High strength, good welding performance).

Warping head

ZG270-500

Medium carbon cast steel has certain toughness and plasticity, high strength and hardness, good machinability, acceptable weldability, and poor casting performance than low carbon steel. Casting defects cannot be avoided.

ZG270-500 Precision Casting

High cost and no defects

Q345-B

Good comprehensive performance, good low temperature performance, good cold stamping performance, good welding performance and machinability. (High strength, good welding performance).

Hydraulic Motor Type

DONGFANG and XINHONG brand

Good quality, cost-effective, long service life. With brake, high safety.

Other brands

High power consumption, relatively poor quality.

Pedestal

Q235-B

Suitable for products with small loads.

Q345-B

High strength and good welding performance.

Due to the fierce market competition, the phenomenon of low quality of other winch suppliers is frequent. What is the difference between us and other low-quality suppliers?

The specific differences are as follows:

Part name

Other low quality suppliers

Result

Our factory

Consequence

Gypsy Wheel

Cast iron

Cast iron has good casting performance, but when the carbon content of cast iron is relatively high, its performance is relatively brittle, and its tensile performance is relatively poor; it is easy to corrode and wear quickly, which is not conducive to load.

Q345D

The Q345D steel plate is preheated before welding to prevent the occurrence of cold cracks. And Q345D has good cold and hot working properties and corrosion resistance, and has good low temperature toughness. Conducive to load, slow wear.

Drum

To reduce costs, reduce the thickness of the drum.

The thickness of the drum is too thin, which is not conducive to the load and wears quickly.

Produced in strict accordance with product production standards, with moderate thickness.

The thickness is moderate, which is good for loading, wears slowly, and does not cause the product to be too heavy to increase the transportation cost.

Warping head

ZG270-500

Casting defects cannot be avoided

Q345-B

High welding strength and slow wear.

Hydraulic Motor Type

Other brands

High power consumption, relatively poor quality.

DONGFANG or XINGHONG brand

Cost-effective, good quality. With brake, high safety.

Pedestal

Q235-B

Low strength, suitable for products with small overload; Used for heavy loads winches, wear out quickly and break easily.

Q345-B

Higher strength, slower wear, not easy to break, suitable for both small and large load winches.

Drawing of Hydraulic Single Gypsy Windlass

Main Specifications

Main Technical Data Of Windlass
Chain Dia. Working Load Supporting Load Working Speed Warping Load Motor Power
mm KN KN m/min KN kW
14/16/17.5 8.3/10.9/13.0 51/67/80 ≥9 8 5.5
19/20.5/22 15.3/17.9/20.6 95/110/126 ≥9 10 7.5
24/26 24.5/28.7 149/175 ≥9 20 11
28/30 33.3/38.3 202/231 ≥9 30 15
32/34/36 43.5/49.1/55.1 261/294/329 ≥9 30 22
38/40/42 61.4/68.0/75.0 365/402/442 ≥9 40 30
44/46/48 82.3/89.9/97.9 483/526/570 ≥9 50 37
50/52/54 106.3/114.9/132.9 617/664/713 ≥9 50 45
Above specifications only for reference, we can supply various anchor windlass according to your requirements.
Maintenance advice:

★ The mechanical part of the machine should work under good lubrication conditions. The machine should be idling for a moment after each refueling to allow the grease to evenly coat the running surface.

★ Refueling parts are butter nozzle, transmission rod, gear, brake lever, etc.

★ The machine body and fixing bolts should be checked frequently for completeness and tightness. The brakes of the machine should be checked regularly to prevent grease from adhering to the braking surface. When the brake belt rivets rub against the brake hub, the brake belt should be replaced in time.

★ What is the condition of the limit bolts (adjustment bolts) of the windlass brake belt? Is it rusted? Special attention should be paid to the screw teeth under the brake lever, that is, after the brake is tightened, check the remaining screw teeth under the brake lever. According to previous experience, there are at least 10 teeth to be assured. The limit bolt is between the brake lever and the brake band, which can be used to adjust the height of the brake lever. The thread of the limit screw is fine. Open the brake lever and slowly adjust the limit bolt until the thread under the brake screw meets the requirements. This bolt should be properly buttered, wrapped in tarpaulin, and checked at least every three months.
