J Type Chain Chaser

J Type Chain Chaser

Description:

J type chain chaser is used to recover anchors from the seabed when the anchor and the chains are detached from the buoy or ship. J type chain chaser is attached by wire rope to the winch of the anchor handling tug and at approximately 1/3 of the water depth. After “snagging ”the anchor chain, it is towed into contact with the anchor shank and flukes enabling the tug to lift and board the anchor. It will handle anchors to 30 tonnes in weight and stud link chain up to 4-1/2 inches diameter.

Drawing of J Type Chain Chaser:

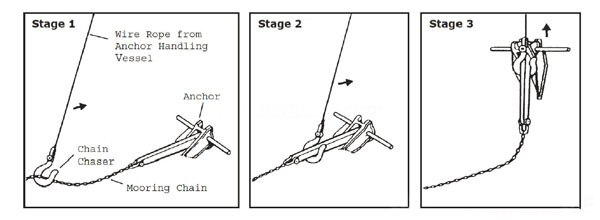

Operation Method of J Type Chain Chaser:

Parameters of J Type Chain Chaser:

Proof Test	SWL	Dimensions(mm)						Weight
(Ton)	(Ton)	A	B	C	D	E	F	(kg)
250	100	2438	1829	699	305	86	124	1886
400	250	2573	2185	699	457	144	178	3400

Model Type: J Type Chain Chaser;

SWL: 100t, 250t;

Material: Casting Steel;

Surface Treatment: Black Bitumen Paint;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc..

J Type Chain Chaser in Factory:
