JCL-15 Marine Fan

JCL-15 Marine Fan

1.Introduction:

JCL series marine or navy centrifugal fans are mechanical devices used on ships and other marine vessels for ventilation and air circulation.

They are designed to move large volumes of air or gas by using centrifugal force to create a pressure difference.

2. Application:

Marine centrifugal fans are used for a variety of purposes, including cooling, heating, ventilation, and exhaust. They are commonly used in engine rooms to circulate air and remove exhaust gases, in cargo holds to remove moisture and gases, and in accommodation spaces to provide fresh air and regulate temperature.

3.Main Property Parameters:

Type	Flow rate m³/h	Total pressure Pa	Static pressure Pa	Speed r/min	Motor			A	A₁	A₂	A₃	B	B₁	B₂	B₃	D₃	D₁	D₂
					Freq Hz	Power Kw	Type	105	160	135	60	135	188	165	80	Ø156	Ø210	Ø185
JCL-15	300	570	545	2920	50	0.75	Y801-2H
	500	550	490
	800	540	390
	1000	450	250
	360	820	780	3500	60
	600	780	700
	960	770	560
	1200	640	360

4. Outline Drawing:

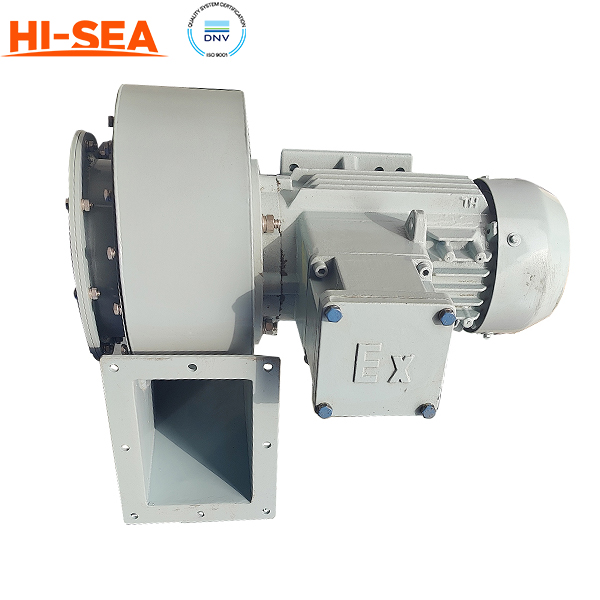

5.Product Showing:
